71913 CD/HCP4A

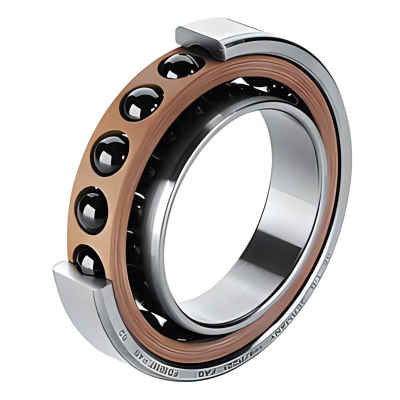

71913 CD/HCP4A Open Type With Ceramic Balls (Super Precision)
71913 CD/HCP4A Open Type With Ceramic Balls (Super Precision)
Price $ 612.56
Number
Part Number 71913 CD/HCP4A
Equivalent to Manufacturer SKF
System of Measurement Metric
Bearing Type Ball
Internal Design High Capacity
Contact Angle 15°
Lubrication Hole NO
For Load Direction Combined Radial and Thrust
Construction Single Row
Seal Type Open
Bore Dia 65 mm
Bore Dia Tolerance -0.007mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.008mm to 0
Width 13 mm
Width Tolerance -0.2mm to 0
Shoulder Diameter Inner Ring (Large Side Face)(d1) 72.7 mm
Shoulder Diameter Inner Ring (Small Side Face)(d2) 72.7 mm
Shoulder Diameter Outer Ring (Large Side Face)(D1) 82.3 mm
Chamfer Dimension (r1 2)(min) 1 mm
Chamfer Dimension (r3 4)(min) 0.3 mm
Distance Pressure Point (a) 17 mm
Ring Material 52100 Chrome Steel
Ball Material Ceramic
Cage Material Cotton fabric reinforced phenolic resin
Dynamic Radial Load 20.8 kN
Static Radial Load 17 kN
Max Speed (X1000 rpm) 26
Lubrication Lubricated
Temperature Range -30° to 110 °C
ABEC Rating P4 (ABEC-7)
ROHS Compliant
REACH Compliant
Ball Dia 7.938 mm
Ball Qty 26
Weight 0.17 kg
