53322 M
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 53322 M |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Open |
| For Load Direction | Thrust |
Dimensions |
|
| Bore Dia | 110 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 190 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 67.2 mm |
| Width Tolerance | +0.025mm to -0.3mm |
| Chamfer Dimension | 2 mm |
| Outer Dia Shaft Washer | 187 mm |
| Inner Dia Housing Washer | 113 mm |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Stainless Steel |
Performance |
|
| Dynamic Thrust Load | 65475 lbf |
| Static Thrust Load | 180000 lbf |
| Max Speed (X1000 rpm) | 1.6 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 7.74 kg |

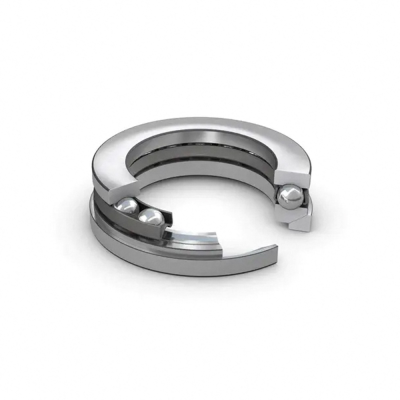

Design Features of 53322 M Bearing
53322 M Bearing is a type of rolling-element bearing designed explicitly to handle axial loads in one direction. 53322 M bore dia is 110 mm. Its out dia is 190 mm. 53322 M height is Height. This bearing comprises a shaft washer affixed to the rotating shaft, paired with a stationary housing washer. Spherical balls, positioned between these washers, mitigate friction and facilitate smooth rotation. A dedicated cage maintains uniform spacing among the balls, preventing contact and assisting in lubricant distribution.
What Benefits Can 53322 M Bearing Provide?
- Axial Load Handling: This bearing is made to manage one-way axial loads efficiently.
- Space-saving: Its design is compact, ideal for tight spaces.
- Smooth Operation: Balls reduce friction, ensuring smoother rotation.
- Speed: Due to its precision crafting, this bearing is suited for high-speed applications.
- Alignment Flexibility: Variants with grooved aligning seat washers can accommodate minor shaft misalignments, enhancing operational reliability.
What Can 53322 M Bearing Be Used for?
53322 M Bearing is integral in a wide array of applications owing to their ability to manage axial loads efficiently. Here are some common applications:
- Industrial Machinery: Often used in high-speed radial drilling machines.
- Automotive Sector: Applied in systems like clutches for efficient axial load management.
- Aerospace Industry: Incorporated in various components for reliable high-speed operations.
- Home Appliances: Used in devices like washing machines to reduce friction.
- Precision Instruments: Essential in printer peripherals for accurate axial load control.
