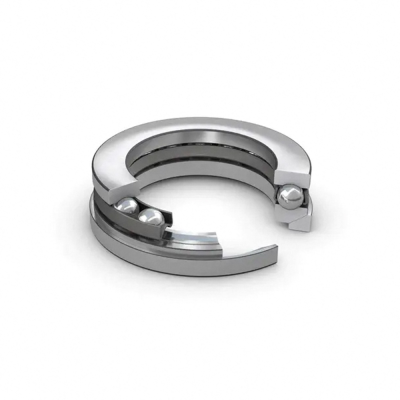

51080 F
Part Number | 51080 F |
Brand: LILY | |
Equivalent: SKF |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Thrust |
Seal Type | Open |
Bore Dia | 400 mm |
Bore Dia Tolerance | -0.04mm to 0 |
Outer Dia | 440 mm |
Outer Dia Tolerance | -0.045mm to 0 |
Height | 30 mm |
Height Tolerance | +0.04mm to -0.5mm |
Outside Dia Shaft Washer | 438.5 mm |
Inner Dia Housing Washer | 401.5 mm |
Chamfer Dimension Washer | 1 mm |
Washer Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | 300 Series Stainless Steel |
Dynamic Thrust Load | 27900 lbf |
Static Thrust Load | 202500 lbf |
Max Speed (X1000 rpm) | 1.6 |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 5.35 kg |
Design Features of 51080 F Bearing
51080 F Bearing is a type of rolling-element bearing designed explicitly to handle axial loads in one direction. 51080 F bore dia is 400 mm. Its out dia is 440 mm. 51080 F height is 30 mm. This bearing comprises a shaft washer affixed to the rotating shaft, paired with a stationary housing washer. Spherical balls, positioned between these washers, mitigate friction and facilitate smooth rotation. A dedicated cage maintains uniform spacing among the balls, preventing contact and assisting in lubricant distribution.
What Benefits Can 51080 F Bearing Provide?
- Axial Load Handling: This bearing is made to manage one-way axial loads efficiently.
- Space-saving: Its design is compact, ideal for tight spaces.
- Smooth Operation: Balls reduce friction, ensuring smoother rotation.
- Speed: Due to its precision crafting, this bearing is suited for high-speed applications.
- Alignment Flexibility: Variants with grooved aligning seat washers can accommodate minor shaft misalignments, enhancing operational reliability.
What Can 51080 F Bearing Be Used for?
51080 F Bearing is integral in a wide array of applications owing to their ability to manage axial loads efficiently. Here are some common applications:
- Industrial Machinery: Often used in high-speed radial drilling machines.
- Automotive Sector: Applied in systems like clutches for efficient axial load management.
- Aerospace Industry: Incorporated in various components for reliable high-speed operations.
- Home Appliances: Used in devices like washing machines to reduce friction.
- Precision Instruments: Essential in printer peripherals for accurate axial load control.
