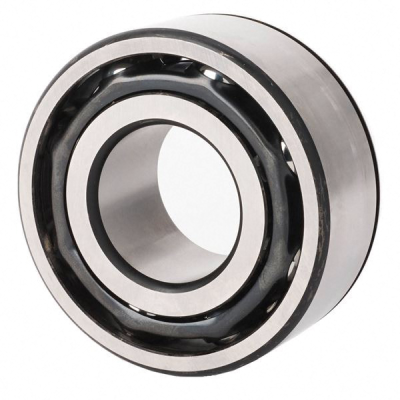

3202 ATN9
Bulk orders will be discounted, please contact our sales for a bulk quote.
Ships in 1-2 business days after payment, plus 3-6 business days in transit via FedEx. Tracking information will be sent to your email.
Free shipping
Delivered in 4-8 business days
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Overview |
|
| Part Number | 3202 ATN9 |
Brand: LILY ![]() |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| For Load Direction | Angular Contact |
| Seal Type | Open |
Dimensions |
|
| Bore Dia | 15 mm |
| Outer Dia | 35 mm |
| Width | 15.9 mm |
| Contact Angle | 30 ° |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Nylon |
Performance |
|
| Dynamic Radial Load | 11.2 kN |
| Static Radial Load | 6.8 kN |
| Max Speed (X1000 rpm) | 18 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease |
| Tolerance Class | PN |
| Weight | 0.067 kg |
