29480 E

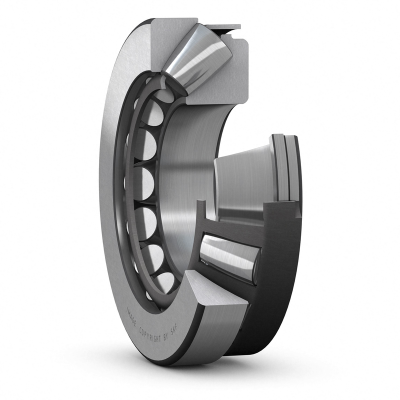

29480 E Spherical Roller Thrust Bearings
Price $ 2781.50
Part Number 29480 E
Brand: LILY
|
Equivalent: SKF
System of Measurement Metric
Bearing Type Roller
For Load Direction Combined
Construction Single Row
Bore Dia 400 mm
Bore Dia Tolerance -0.045 to 0
Outer Dia 710 mm
Outer Dia Tolerance -0.075 to 0
Height 185 mm
Height Tolerance -0.02 to 0
Outside Diameter(d1) 645 mm
Shoulder Diameter Outer Ring(D1) 525 mm
Width Shaft Washer Or Length Of Shaft(B) 120 mm
Height Shaft Washer Cage(B1) 165.6 mm
Height Housing Washer(C) 89.5 mm
Distance From Shaft Washer End Side Face To Pressure Point(s) 234 mm
Chamfer Dimension Shaft Washer(r1,2) 7.5 mm
Roller Material Steel
Cage Material Steel
Dynamic Thrust Load 1719788 lbf
Static Thrust Load 5957437 lbf
Max Speed (X1000 rpm) 0.85
Lubrication Required
Temperature Range -30 to 100 °C
RoHS Compliant
REACH Compliant
Weight 310 kg
