29452 E

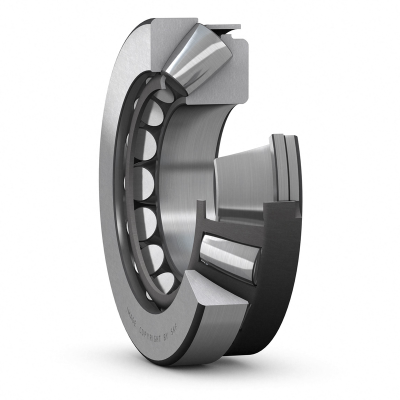

29452 E Spherical Roller Thrust Bearings
Price $ 2016.00
Part Number 29452 E
Brand: LILY
|
Equivalent: SKF
System of Measurement Metric
Bearing Type Roller
For Load Direction Combined
Construction Single Row
Bore Dia 260 mm
Bore Dia Tolerance -0.035 to 0
Outer Dia 480 mm
Outer Dia Tolerance -0.045 to 0
Height 132 mm
Height Tolerance -0.175 to 0
Outside Diameter(d1) 427 mm
Shoulder Diameter Outer Ring(D1) 346 mm
Width Shaft Washer Or Length Of Shaft(B) 86 mm
Height Shaft Washer Cage(B1) 119 mm
Height Housing Washer(C) 63 mm
Distance From Shaft Washer End Side Face To Pressure Point(s) 154 mm
Chamfer Dimension Shaft Washer(r1,2) 6 mm
Roller Material Steel
Cage Material Steel
Dynamic Thrust Load 910476 lbf
Static Thrust Load 2900035 lbf
Max Speed (X1000 rpm) 1.3
Lubrication Required
Temperature Range -30 to 100 °C
RoHS Compliant
REACH Compliant
Weight 105 kg
