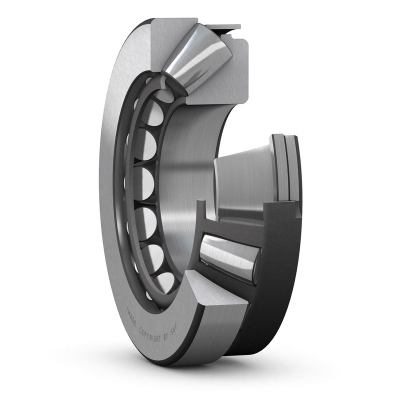

29430 E
Price $ 700.00
| Part Number | 29430 E |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 150 mm |
| Bore Dia Tolerance | -0.025 to 0 |
| Outer Dia | 300 mm |
| Outer Dia Tolerance | -0.035 to 0 |
| Height | 90 mm |
| Height Tolerance | -0.125 to 0 |
| Outside Diameter(d1) | 262 mm |
| Shoulder Diameter Outer Ring(D1) | 208 mm |
| Width Shaft Washer Or Length Of Shaft(B) | 58 mm |
| Height Shaft Washer Cage(B1) | 80.8 mm |
| Height Housing Washer(C) | 43.4 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 92 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 4 mm |
| Roller Material | Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 418145 lbf |
| Static Thrust Load | 1146526 lbf |
| Max Speed (X1000 rpm) | 2.2 |
| Lubrication | Required |
| Temperature Range | -30 to 100 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 28 kg |
})
