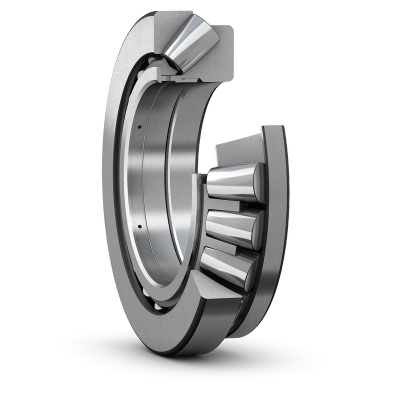

294/950 EF
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 294/950 EF |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Spherical |
| Bearing Type | Roller |
| For Load Direction | Axial |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 950 mm |
| Bore Dia Tolerance | -0.1 to 0 |
| Outer Dia | 1600 mm |
| Outer Dia Tolerance | -0.2 to 0 |
| Width | 390 mm |
| Height Tolerance | -0.3 to 0 |
| Outside Diameter(d1) | 1470 mm |
| Shoulder Diameter Outer Ring (D1) | 1209 mm |
| Height Shaft Washer Cage(B1) | 377 mm |
| Height Housing Washer(C) | 191 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 546 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 15 mm |
Material |
|
| Roller Material | Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Thrust Load | 28200 kN |
| Static Thrust Load | 132000 kN |
| Max Speed (X1000 rpm) | 0.28 |
| Temperature Range | -30 to 100 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3065 kg |
Design Features of 294/950 EF Bearing
294/950 EF Bearing features asymmetrical rollers arranged in a spherical profile, allowing it to accommodate both high axial and moderate radial loads while compensating for misalignment. 294/950 EF outer dia is 1600 mm. Its bore dia is 950 mm. Its robust design ensures excellent load capacity, durability, and smooth operation in applications subjected to heavy loads and shaft deflections.
What Benefits Can 294/950 EF Bearing Provide?
- High load capacity: It can handle large axial loads and moderate radial loads, making it ideal for heavy-duty applications.
- Misalignment tolerance: Its spherical design allows it to compensate for shaft misalignment, reducing stress and improving the longevity of the bearing.
- Durability: Designed for heavy loads and harsh conditions, it offers excellent performance and reliability, even under challenging operating conditions.
- Smooth operation: The design reduces friction, ensuring efficient performance and minimizing wear, leading to lower maintenance costs.
What Can 294/950 EF Bearing Be Used for?
- Hydraulic turbines: It supports high axial loads while accommodating misalignments in large, high-performance turbines.
- Gearboxes: In heavy industrial machinery, it ensures smooth operation under heavy loads and compensates for shaft deflections.
- Marine propulsion systems: It withstands the high axial forces and harsh conditions in ship propulsion systems.
- Cranes and lifting equipment: It handles the significant axial loads encountered in lifting and hoisting operations.
- Metalworking machinery: In equipment like rolling mills, it ensures durability and smooth performance under extreme pressures.
