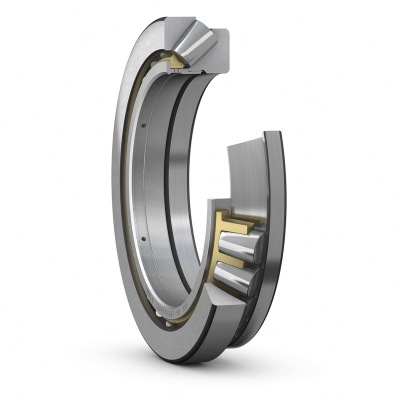

29260
Price $ 1572.00
| Part Number | 29260 |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 300 mm |
| Bore Dia Tolerance | -0.035 to 0 |
| Outer Dia | 420 mm |
| Outer Dia Tolerance | -0.045 to 0 |
| Height | 73 mm |
| Height Tolerance | -0.125 to 0 |
| Outside Diameter(d1) | 405 mm |
| Shoulder Diameter Outer Ring(D1) | 353 mm |
| Height Shaft Washer Cage(B1) | 69 mm |
| Height Housing Washer(C) | 38 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 162 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 3 mm |
| Roller Material | Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 240546 lbf |
| Static Thrust Load | 1079083 lbf |
| Max Speed (X1000 rpm) | 1.4 |
| Lubrication | Required |
| Temperature Range | -30 to 100 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 30.5 kg |
})
