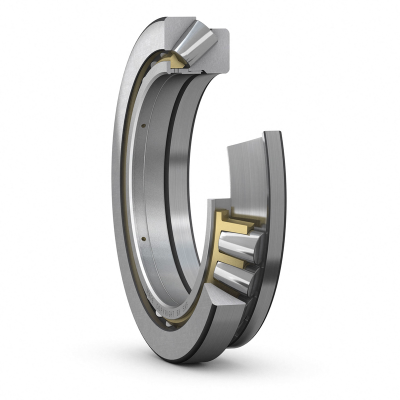

29256
Price $ 1630.50
| Part Number | 29256 |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 280 mm |
| Bore Dia Tolerance | -0.035 to 0 |
| Outer Dia | 380 mm |
| Outer Dia Tolerance | -0.04 to 0 |
| Height | 60 mm |
| Height Tolerance | -0.125 to 0 |
| Outside Diameter(d1) | 370 mm |
| Shoulder Diameter Outer Ring(D1) | 323 mm |
| Height Shaft Washer Cage(B1) | 57 mm |
| Height Housing Washer(C) | 30.5 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 150 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 2.1 mm |
| Roller Material | Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 19401 lbf |
| Static Thrust Load | 899236 lbf |
| Max Speed (X1000 rpm) | 1.7 |
| Lubrication | Required |
| Temperature Range | -30 to 100 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 19.5 kg |
})
