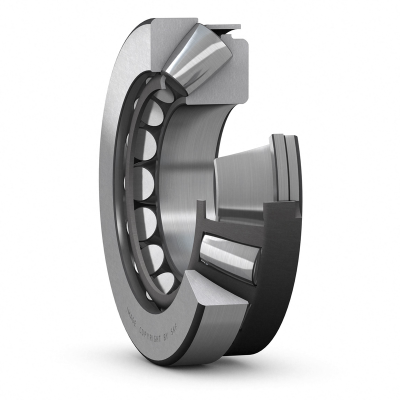

29240 E
Price $ 838.03
| Part Number | 29240 E |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 200 mm |
| Bore Dia Tolerance | -0.03 to 0 |
| Outer Dia | 280 mm |
| Outer Dia Tolerance | -0.035 to 0 |
| Height | 48 mm |
| Outside Diameter(d1) | 260 mm |
| Shoulder Diameter Outer Ring(D1) | 233 mm |
| Width Shaft Washer Or Length Of Shaft(B) | 30 mm |
| Height Shaft Washer Cage(B1) | 43.4 mm |
| Height Housing Washer(C) | 24 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 108 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 2 mm |
| Roller Material | Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 147475 lbf |
| Static Thrust Load | 595744 lbf |
| Max Speed (X1000 rpm) | 2.2 |
| Lubrication | Required |
| Temperature Range | -30 to 100 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 9.3 kg |
})
