292/560

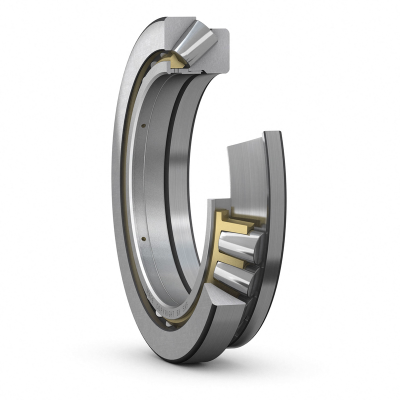

292/560 Spherical Roller Thrust Bearings
Price $ 3219.03
Part Number 292/560
Brand: LILY
|
Equivalent: SKF
System of Measurement Metric
Bearing Type Roller
For Load Direction Combined
Construction Single Row
Bore Dia 560 mm
Bore Dia Tolerance -0.05 to 0
Outer Dia 750 mm
Outer Dia Tolerance -0.075 to 0
Height 115 mm
Height Tolerance -0.15 to 0
Outside Diameter(d1) 732 mm
Shoulder Diameter Outer Ring(D1) 644 mm
Height Shaft Washer Cage(B1) 111 mm
Height Housing Washer(C) 61 mm
Distance From Shaft Washer End Side Face To Pressure Point(s) 302 mm
Chamfer Dimension Shaft Washer(r1,2) 5 mm
Roller Material Steel
Cage Material Steel
Dynamic Thrust Load 672179 lbf
Static Thrust Load 3596943 lbf
Max Speed (X1000 rpm) 0.8
Lubrication Required
Temperature Range -30 to 100 °C
RoHS Compliant
REACH Compliant
Weight 140 kg
Download Pdf
