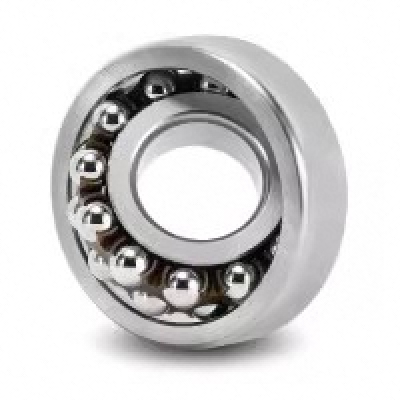

1320 K/C3
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 1320 K/C3 |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Open |
| For Load Direction | Radial |
| Construction | Double Row |
Dimensions |
|
| Bore Dia | 100 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 215 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 47 mm |
| Width Tolerance | -0.2mm to 0 |
| Chamfer Dimension | 3 mm |
| External Diameter On Inner Ring | 136 mm |
| Radial Clearance | C3 |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Nylon |
Performance |
|
| Dynamic Radial Load | 32175 lbf |
| Static Radial Load | 12825 lbf |
| Max Speed (X1000 rpm) | 4 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Lubricated |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 8.05 kg |
Design Features of 1320 K/C3 Bearing
1320 K/C3 Bearing is a type of rolling-element bearing uniquely designed to tolerate misalignment of the shaft with respect to the housing. It has two rows of balls and a common spherical raceway in the outer ring, allowing the bearing to be self-aligning. 1320 K/C3 bore dia is 100 mm. Its out dia is 215 mm. Its width is 47 mm. 1320 K/C3 Bearing is versatile and adaptive, ensuring smooth operation even when not perfectly aligned. Its unique design helps prevent stresses on the bearing, resulting in a longer operational life.
What Benefits Can 1320 K/C3 Bearing Provide?
- Misalignment Adaptability: These bearings efficiently handle both static and dynamic misalignment, resembling the self-aligning capabilities of spherical roller bearings.
- High-Speed Efficiency: With reduced friction compared to other bearings, they remain cool, even at elevated speeds.
- Longevity and Low Maintenance: Their ability to run cooler means longer bearing life and fewer maintenance breaks.
- Optimized for Light Loads: They operate exceptionally well, even under minimal load conditions.
- Noise and Vibration Reduction: Ideal for applications like fans, these bearings help in decreasing noise and vibration levels.
What Can 1320 K/C3 Bearing Be Used for?
1320 K/C3 Bearing is suitable for applications where misalignment can arise from errors in mounting or from shaft deflection.
- Automotive: Used in power steering systems, drive shafts, and steering column joints, where angular misalignments are common.
- Agricultural: Essential in farm equipment like tractors and harvesters, where uneven terrains can cause shaft misalignment.
- Textile: Deployed in spinning and weaving machines where smooth, consistent rotation is crucial.
- Conveyor Systems: Useful in belt systems to maintain consistent belt tension and alignment, especially in long-distance conveyors.
- Mining and Double Row: Used in crushers, vibrating screens, and heavy-duty machinery that undergo rigorous operation and potential shaft deflections.
