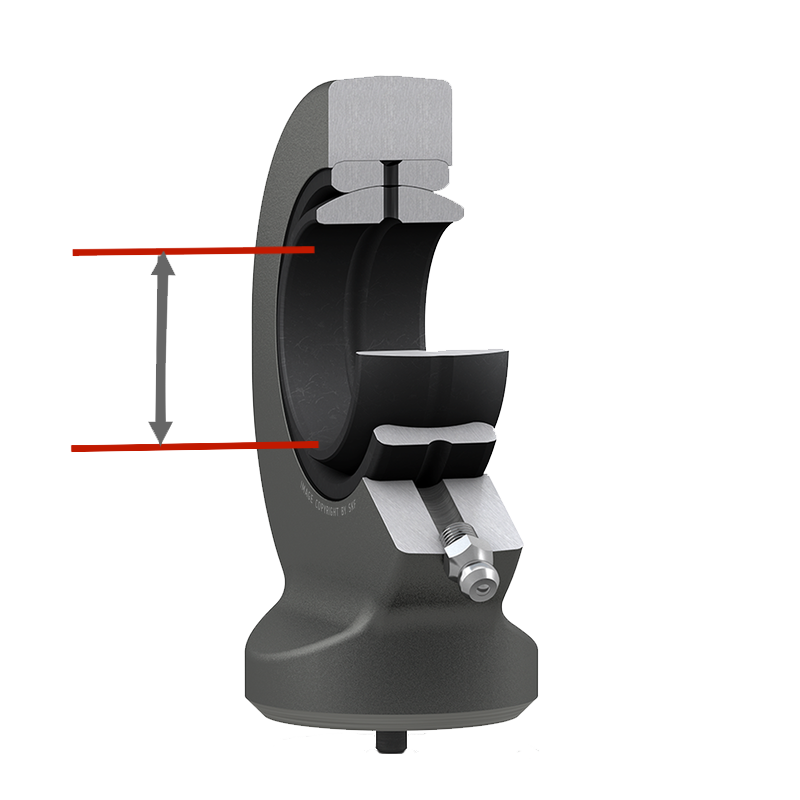

Bore Dia
Angle Of Tilt
- Equivalent to Manufacturer :
- SKF
Welding Shank
24 Products
Welding Shank
welding shank with cylindrical or rectangular section
Part Number
Bore Dia
Width Inner
Ring
Ring
Width Head
Diameter
Head
Head
Length (Height)
Housing
Housing
Angle Of
Tilt
Tilt
Height Shank
End Face
End Face
Dynamic Radial
Load
Load
Static Radial
Load
Load
SC 20 ES
20 mm
16 mm
max.13.5 mm
max.54 mm
max.66 mm
9°
38 mm
6750 lbf
10462 lbf
SCF 20 ES
20 mm
16 mm
max.20 mm
max.51.5 mm
max.64.5 mm
9°
38 mm
6750 lbf
14175 lbf
SC 25 ES
25 mm
20 mm
max.18 mm
max.65 mm
max.78 mm
7°
45 mm
10800 lbf
16538 lbf
SCF 25 ES
25 mm
20 mm
max.24 mm
max.56.5 mm
max.74 mm
7°
45 mm
10800 lbf
14738 lbf
SC 30 ES
30 mm
22 mm
max.20 mm
max.75 mm
max.89 mm
6°
51 mm
13950 lbf
21712 lbf
SCF 30 ES
30 mm
22 mm
max.29 mm
max.66.5 mm
max.85 mm
6°
51 mm
13950 lbf
24750 lbf
SC 35 ES
35 mm
25 mm
max.22 mm
max.84 mm
max.104 mm
6°
61 mm
18000 lbf
25200 lbf
SCF 35 ES
35 mm
25 mm
max.31 mm
max.85 mm
max.104 mm
6°
61 mm
18000 lbf
41175 lbf
SC 40 ES
40 mm
28 mm
max.24 mm
max.94 mm
max.118 mm
7°
69 mm
22500 lbf
30150 lbf
SCF 40 ES
40 mm
28 mm
max.36.5 mm
max.102 mm
max.121 mm
7°
69 mm
22500 lbf
64125 lbf
SC 45 ES
45 mm
32 mm
max.28 mm
max.104 mm
max.132 mm
7°
77 mm
28575 lbf
40500 lbf
SCF 45 ES
45 mm
32 mm
max.41.5 mm
max.112 mm
max.134 mm
7°
77 mm
28575 lbf
81000 lbf
SC 50 ES
50 mm
35 mm
max.31 mm
max.114 mm
max.150 mm
6°
88 mm
35100 lbf
49500 lbf
SCF 50 ES
50 mm
35 mm
max.41.5 mm
max.125.5 mm
max.151.5 mm
6°
88 mm
35100 lbf
93375 lbf
SC 60 ES
60 mm
44 mm
max.39 mm
max.137 mm
max.173 mm
6°
100 mm
55125 lbf
75375 lbf
SCF 60 ES
60 mm
44 mm
max.51.5 mm
max.142.5 mm
max.172.5 mm
6°
100 mm
55125 lbf
119250 lbf
SC 70 ES
70 mm
49 mm
max.43 mm
max.162 mm
max.199 mm
6°
115 mm
70875 lbf
102375 lbf
SCF 70 ES
70 mm
49 mm
max.57 mm
max.166.5 mm
max.199 mm
6°
115 mm
70875 lbf
153000 lbf
SC 80 ES
80 mm
55 mm
max.48 mm
max.182 mm
max.237 mm
6°
141 mm
90000 lbf
123750 lbf
SCF 80 ES
80 mm
55 mm
max.62 mm
max.182.5 mm
max.233.5 mm
6°
141 mm
90000 lbf
168750 lbf
SCF 90 ES
90 mm
60 mm
max.67 mm
max.228.5 mm
max.265.5 mm
5°
150 mm
110250 lbf
290250 lbf
SCF 100 ES
100 mm
70 mm
max.72 mm
max.252.5 mm
max.296.5 mm
7°
170 mm
137250 lbf
321750 lbf
SCF 110 ES
110 mm
70 mm
max.82.5 mm
max.298 mm
max.334 mm
6°
185 mm
147375 lbf
495000 lbf
SCF 120 ES
120 mm
85 mm
max.92.5 mm
max.363 mm
max.391.5 mm
6°
210 mm
213750 lbf
731250 lbf
