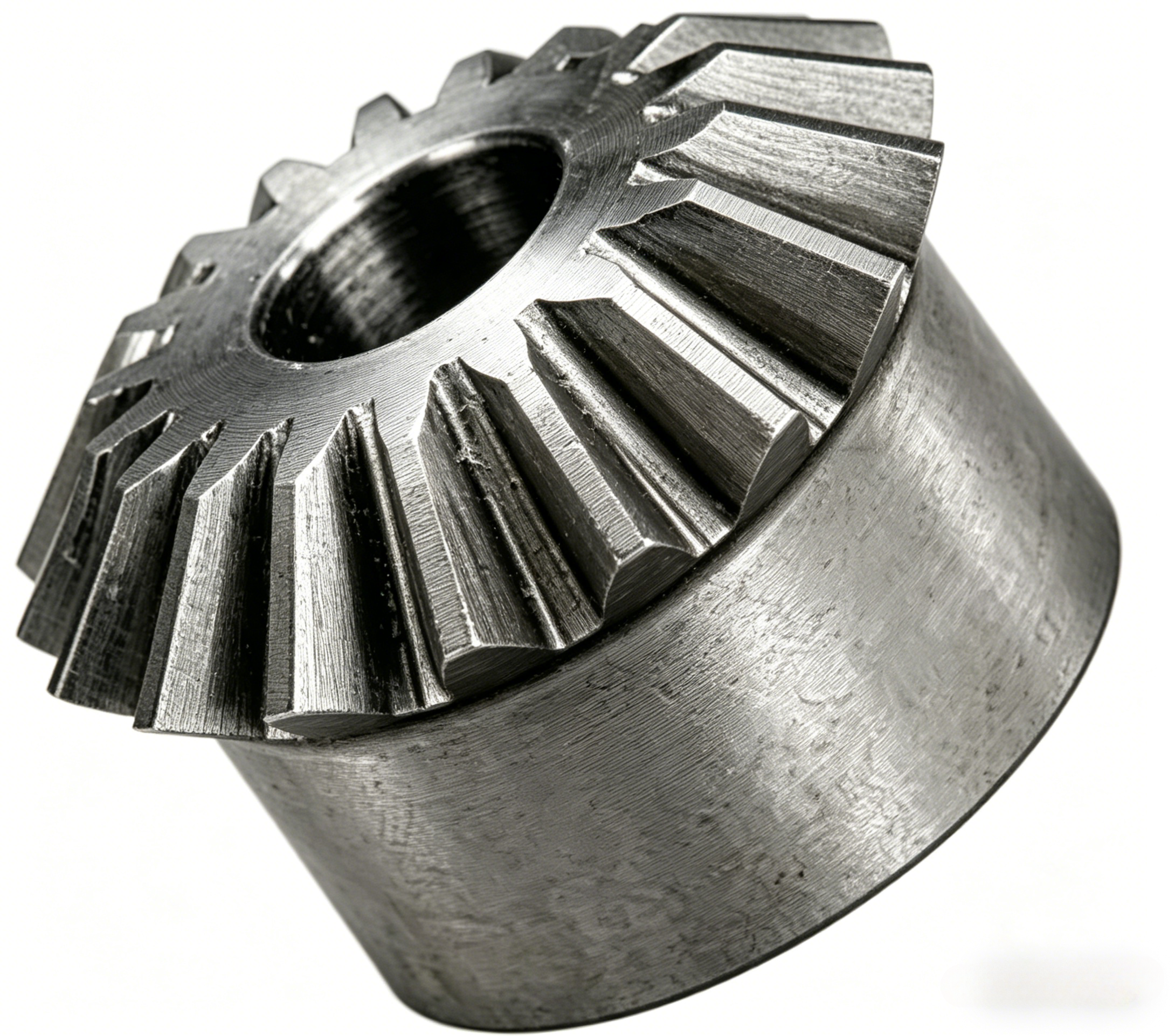

Metal Miter Gears

Metal miter gears are bevel gears with 90-degree shafts, used to transmit motion and torque between shafts that intersect at a right angle, providing smooth and efficient gear operation in various mechanical systems.

Plastic Miter Gears

Plastic miter gears are designed to transmit motion between intersecting shafts at a 90-degree angle, offering a lightweight and cost-effective solution with quiet operation and reduced weight compared to metal miter gears.

Standard Miter Gears

Miter gears are a special type of bevel gear used to transmit motion between shafts that intersect at a 90-degree angle. They are characterized by their equal-sized, conical gears, which allow for a direct change in the direction of rotation.

What Are Miter Gears?

Miter gears are a specialized type of bevel gear designed to transmit power between intersecting shafts, most commonly set at a 90° angle. Unlike other bevel gears, they maintain a 1:1 gear ratio, meaning they only change the direction of rotation without altering speed or torque.

Key Characteristics of Miter Gears

Types of Teeth: Available in straight, spiral, and zerol configurations to suit different load and noise requirements.
Standard & Angular Designs: While most miter gears connect perpendicular shafts, angular variations allow shaft angles from 45° to 120°.
Compatibility: Proper meshing requires matching pressure angle, pitch/module, shaft angle, and number of teeth.

Straight Miter Gears

Straight-tooth miter gears can pair with identical gears, offering simplicity and efficiency with lower friction.

Spiral Miter Gears

Spiral miter gears run more smoothly and carry higher loads but require matching left- and right-hand gears for proper engagement.

Material Options

Carbon Steel Miter Gears: High strength and wear resistance, ideal for heavy-duty and high-torque applications. Can be surface hardened for extended service life.
Stainless Steel Miter Gears: Corrosion-resistant, suitable for damp or hygienic environments such as food processing equipment.
Plastic & Sintered Metal Miter Gears: Lightweight, economical solutions for light-duty or mass-production applications, often used in office machines or compact devices.

Advantages of Miter Gears

Reliable directional power transmission without speed change
Wide choice of materials and precision levels for different industries
Available in economical commercial grades and high-precision grades for demanding torque and speed requirements
Quiet operation possible with specialized crowning and finishing techniques

Common Applications

Miter gears are used in a wide range of industries, including:

Lifting and conveying systems
Food and beverage processing machinery
Packaging and automation equipment
Light-duty office and consumer devices
