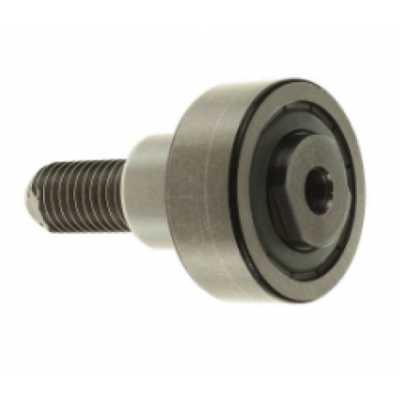

ZLE5207-2Z
| Part Number | ZLE5207-2Z |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Roller Shape | Crowned |
| Internal Construction | Ball Bearing |
| Type | Eccentric Stud |
| Mounting Method | Spanner Flat |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 80 mm |
| Roller Width | 27 mm |
| Stud Dia | 30 mm |
| Stud Length | 64 mm |
| Minimum Thread Length | 32 mm |
| Shoulder Dia | 45 mm |
| Shoulder Length | 3 mm |
| Bushing Dia | 35 mm |
| Bushing Length | 29 mm |
| Eccentricity | 1.5 mm |
| Crown Radius | 500 mm |
| rmin | 1.1 mm |
| Maximum Width of Thrust Washer | 35 mm |
| Thread Length (Inner) | 8 mm |
| Width of Flats | 27 mm |
| Overall Length | 99 mm |
| Max Speed | 4650 1/min |
| Static Radial Load | 25000 N |
| Dynamic Radial Load | 30000 N |
| Fatigue Load Limit Radial | 1320 N |
| Tightening Torque Nut | 540 Nm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight (g) | 1.297 kg |
})
