Overview |
|
| Part Number | Y32009XR |
Brand: LILY  |
Interchangeable With: Timken |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Tapered |
| Type | Cups |
| Cups Type | Flanged |
| Series | 32009X |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Outer Dia | 75 mm |
| Outer Dia Tolerance | -0.016mm to 0 |
| Flange Outer Diameter(D1) | 79 mm |
| Cup Flange Width(C1) | 3.5 mm |
| Cup Width | 15.5 mm |
| Cup Width Tolerance | -0.15mm to 0 |
| Cup Backface ToClear Radius | 1 mm |
| Cup Frontface Backing Diameter | 73.91 mm |
Material |
|
| Ring Material | Chrome Steel |
Performance |
|
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |

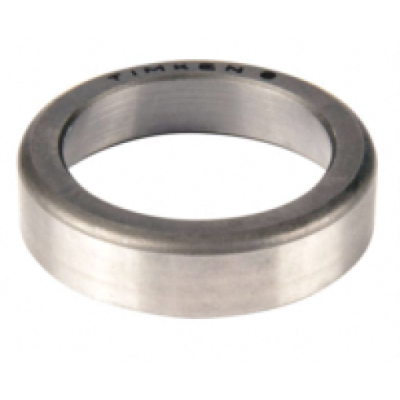

Design Features of Y32009XR Bearing
Y32009XR features an extended lip that helps secure the bearing in place and prevent lateral movement, ensuring stability during operation. Y32009XR outer dia is 75 mm. Its cup width is 15.5 mm. It is designed with metric dimensions and manufactured to high tolerances, often including lubrication provisions to enhance performance and durability.
What Benefits Can Y32009XR Bearing Provide?
- Secure Positioning: The flanged design helps prevent lateral movement, ensuring the bearing stays in place during operation.
- Precise Load Handling: Manufactured with high tolerances, it offers accurate load support and stable performance in demanding environments.
- Durability: Made from high-quality materials, it is resistant to wear and tear, providing long-lasting service.
- Reduced Friction: Its smooth surface finish helps minimize friction, improving the efficiency of the bearing system.
- Easy Maintenance: Designed with lubrication provisions, it ensures consistent performance and reduces maintenance needs over time.
What Can Y32009XR Bearing Be Used for?
- Automotive: Utilized in wheel bearings, transmissions, and differentials to support stable and efficient operation.
- Industrial Machinery: Found in gearboxes, conveyor systems, and pumps, ensuring reliable performance in heavy-duty environments.
- Agricultural Equipment: Used in tractors and other farming machinery where stability and durability are essential for handling loads.
- Construction Equipment: Employed in heavy machinery like excavators and loaders to provide support under significant load conditions.
- Marine Applications: Applied in boat trailers and marine equipment, providing resistance to wear and preventing lateral movement in high-stress conditions.
