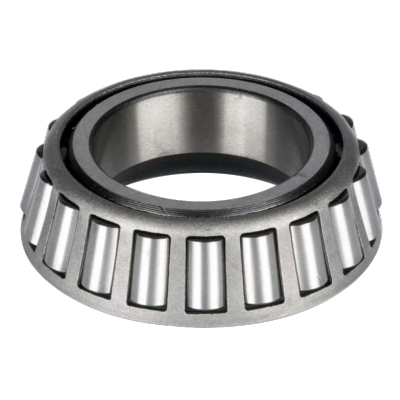

X32952M
| Part Number | X32952M |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Metric |
| Type | Cones |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | 32952 |
| Bore Dia | 260 mm |
| Bore Dia Tolerance | -0.035mm to 0 |
| Cone Width | 63.5 mm |
| Cone Width Tolerance | -0.2mm to 0 |
| Cone Backface ToClear Radius | 3 mm |
| Cone Frontface Backing Diameter | 275 mm |
| Cone Backface Backing Diameter | 280 mm |
| Cage Cone Frontface Clearance | 4.6 mm |
| Cage Cone Backface Clearance | 6.1 mm |
| Effective Center Location | 6.1 mm |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 186525 lbf |
| Static Radial Load | 380250 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 48375 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 324000 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 33750 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 84150 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
