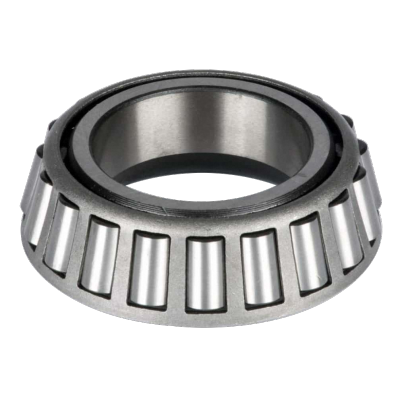

X32320M
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | X32320M |
Brand: LILY  |
Interchangeable With: Timken |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Cones |
| Seal Type | Open |
| For Load Direction | Combined |
| Construction | Single Row |
| Series | 32320M |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Bore Dia | 100 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Effective Center Location | -26.9 mm |
| Cone Width | 73 mm |
| Cone Width Tolerance | -0.15mm to 0 |
| Cone Backface ToClear Radius | 4.06 mm |
| Cone Frontface Backing Diameter | 124 mm |
| Cone Backface Backing Diameter | 129 mm |
| Cage Cone Frontface Clearance | 6.1 mm |
| Cage Cone Backface Clearance | 13 mm |
Material |
|
| Ring Material | Chrome Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Radial Load | 139725 lbf |
| Static Radial Load | 198675 lbf |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 36225 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 21397.5 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 243000 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 63000 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
Design Features of X32320M Bearing
X32320M has a tapered shape that allows for better load distribution and minimizes friction, making it effective for handling both radial and axial loads. X32320M cone width is 73 mm. Its bore dia is 100 mm. Designed with high precision and metric dimensions, it is made from durable materials and often includes lubrication provisions to enhance performance and longevity.
What Benefits Can X32320M Bearing Provide?
- Improved Load Distribution: The tapered design helps distribute loads evenly, reducing stress on individual components and extending their lifespan.
- Reduced Friction: The conical shape minimizes friction between the cone and roller elements, leading to smoother operation and increased efficiency.
- High Precision: Manufactured to tight tolerances, single cones ensure accurate performance in applications that require precise movement and positioning.
- Versatile Load Handling: Capable of accommodating both radial and axial loads, making it suitable for various applications in different industries.
- Durability: Made from high-quality materials, single cones are resistant to wear and tear, ensuring long-term reliability even in demanding environments.
What Can X32320M Bearing Be Used for?
- Automotive: In wheel hubs, transmissions, and differentials for efficient load handling and smooth operation.
- Industrial Machinery: Found in gearboxes, conveyor systems, and pumps, ensuring precise movement and reliable performance.
- Aerospace: Used in aircraft systems where high precision and reliability are essential.
- Robotics: Employed in robotic joints and actuators for accurate movement and load distribution.
- Machine Tools: Integral to CNC machines, lathes, and milling machines, ensuring precision during machining operations.
