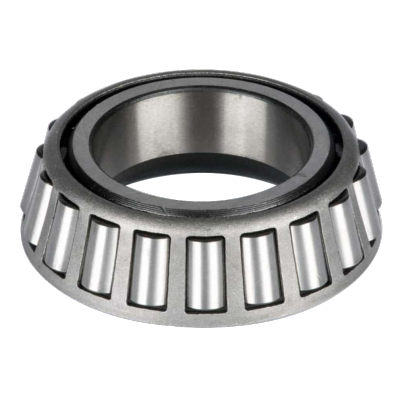

X32311
| Part Number | X32311 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Metric |
| Type | Cones |
| Bearing Part Number | X32311-Y32311 |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | 32311 |
| Bore Dia | 55 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Cone Width | 43 mm |
| Cone Width Tolerance | -0.15mm to 0 |
| Cone Backface ToClear Radius | 2.54 mm |
| Cone Frontface Backing Diameter | 66 mm |
| Cone Backface Backing Diameter | 70 mm |
| Cage Cone Frontface Clearance | 3.8 mm |
| Cage Cone Backface Clearance | 5.1 mm |
| Effective Center Location | -15.2 mm |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 51300 lbf |
| Static Radial Load | 59625 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 13297.5 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 89325 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 7852.5 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 23175 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
