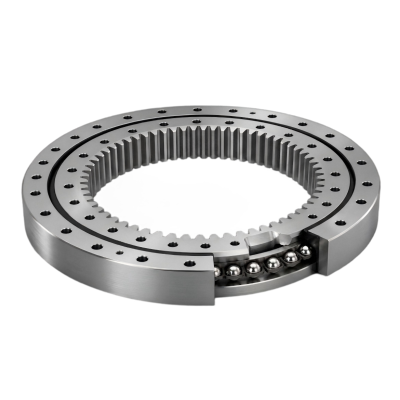

VSI250755-N-ZT-RL0
| Part Number | VSI250755-N-ZT-RL0 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Series | VS Series |
| Gear | Internal Gear |
| Type | Ball |
| Bearing Type | Standard |
| Product Type | Slewing Beraing |
| Inside Diameter Of Inner Ring | 24.016" |
| Outside Diameter Of Outer Ring | 33.661" |
| Internal Diameter On Inner Ring | 29.724" |
| Internal Diameter On Inner Ring Tolerance | -IT8 |
| Internal Diameter On Outer Ring | 33.583" |
| External Diameter On Inner Ring | 29.803" |
| Height Of Overall Bearing Assembly | 3.15" |
| Height Of Inner Ring | 2.126" |
| Height Of Outer Ring | 2.795" |
| Bolt Circle In Inner Ring | 27.323" |
| Bolt Circle In Outer Ring | 32.087" |
| Size Holes In Inner Ring | 0.866" |
| Size Holes In Outer Ring | M20 |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Pitch Diameter Of Gear | 24.803" |
| Diametral Pitch | 10 |
| Number Of Gear Teeth | 63 |
| Permissible Tooth Forces T | 15300 lbs |
| Max Gear Tooth Load Fz | 22252.5 lbs |
| Basic Dynamic Load Rating(Ca) | 76500 lbs |
| Basic Static Load Rating(C0a) | 607500 lbs |
| Basic Dynamic Load Rating(Cr) | 68625 lbs |
| Basic Static Load Rating(C0r) | 276750 lbs |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 119 Kg |
})
INTERCHANGE
The LILY bearing part series VSI250755-N-ZT-RL0 is a potential replacement for these common bearing part numbers.
LILY
INA
LVSI250755-N-ZT-RL0
VSI250755-N-ZT-RL0
