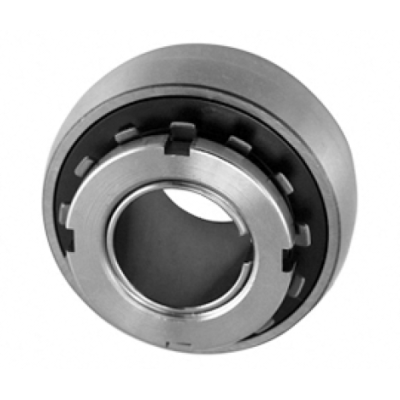

UK206+HE2306
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | UK206+HE2306 |
Brand: LILY  |
Interchangeable With: AMI |
Characteristics |
|
| System of Measurement | Inch |
| Duty Type | Normal Duty |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Bearing Inserts |
| Outer Ring type | Spherical O.D. |
| Sealing Type | Contact Seal and Slinger |
| Lubricant | Prelubricated / Relubricatable |
| Set Screw Locking | Tapered Adapter Sleeve Locking |
Dimensions |
|
| Bore Dia | 1" |
| Outer Dia | 2.4409" |
| Outer Dia of Inner Ring | 1.772" |
| Whole Width | 1.496" |
| Width of Inner Ring | 1.024" |
| Width Of Outer Ring | 0.748" |
| Width of Locking | 0.315" |
| Distance to Lubrication hole | 0.201" |
Material |
|
| Bearing Material | AISI 52100 Steel |
| Retainer Material | Steel Retainer |
Performance |
|
| Dynamic Load Rating | 4410 lbf |
| Static Load Rating | 2540 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.88 lbs |
Design Features of UK206+HE2306
UK206+HE2306 feature a precision-engineered rolling element assembly housed within a durable, often cylindrical or spherical, outer shell designed for easy mounting. They typically include sealed or shielded designs to protect against contaminants while retaining lubrication, ensuring smooth rotation and reduced maintenance. Their standardized dimensions and self-aligning or snug-fit capabilities allow quick integration into pillow blocks, flange units, or other bearing housings for reliable shaft support.
What Benefits Can UK206+HE2306 Provide?
- Versatile Compatibility: Standardized dimensions allow easy installation into various housings such as pillow blocks, flange units, and cartridge assemblies.
- Enhanced Shaft Support: Precision-engineered rolling elements ensure smooth rotation, accurate alignment, and stable load handling.
- Reduced Maintenance: Sealed or shielded designs retain lubrication and protect against dust, moisture, and contaminants, extending service life.
- Simplified Replacement: Inserts can be quickly replaced without removing the entire housing, minimizing downtime and labor costs.
- Reliable Performance in Diverse Applications: Suitable for industrial, agricultural, and material-handling machinery, providing consistent operation under varying loads and conditions.
What Can UK206+HE2306 Be Used for?
- Pillow Block and Flange Bearing Units: They serve as the core rolling element assembly, providing smooth rotation and reliable shaft support.
- Conveyor Systems: Used in rollers and pulleys to ensure efficient and stable material transport.
- Industrial Machinery: Applied in mixers, crushers, and processing equipment requiring precise alignment and load handling.
- Agricultural Equipment: Support rotating shafts in harvesters, conveyors, and irrigation systems under various environmental conditions.
- Automated and Material Handling Systems: Used in packaging, sorting, and assembly equipment where consistent performance and minimal maintenance are essential.
