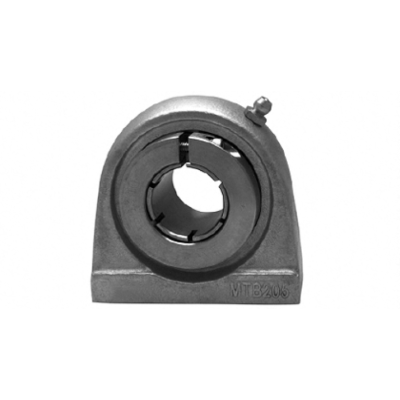

UEMTB208-24MZ20
Bulk orders will be discounted, please contact our sales for a bulk quote.
Ships in 1-2 business days after payment, plus 3-6 business days in transit via FedEx. Tracking information will be sent to your email.
Free shipping
Delivered in 4-8 business days
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Overview |
|
| Part Number | UEMTB208-24MZ20 |
Brand: LILY ![]() |
Interchangeable With: AMI |
| Bearing Part Number | UE208-24MZ20 |
| Housing Part Number | MTB208 |
| Product Series | UEMTB200MZ20 |
Characteristics |
|
| System of Measurement | Inch |
| Housing Style | Pillow Block Bearing |
| Housing Configuration | 1 Piece Solid |
| Bearing Type | Ball Bearing |
| Bearing Duty | Standard Duty |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Bore Type | Round |
| Inner Ring Type | Wide Inner Ring |
| Shaft Mount Type | Eccentric Collar Locking |
| Bearing Seal Type | Double Sealed |
| Number of Mounting Holes | 2 |
Dimensions |
|
| Shaft Diameter | 1.5" |
| Bore Dia | 1.5" |
| Bearing Width | 1.976" |
| Whole Length | 4.625" |
| Whole Width | 2.1719" |
| Overall Height | 3.9375" |
| Center Height | 1.9375" |
| Pillow Width | 1.875" |
| Hole Center to Center | 3.5" |
| Hole Ctr-to-Ctr Min | 3.5" |
| Hole Ctr-to-Ctr Max | 3.5" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Base Width | 1.875 " |
| Fixed Crew Dia | 1/2-13" |
| Hole Length | 0.75" |
| n | 3/4" |
| t | 1/2 13 |
| U | 1.976" |
Material |
|
| Bearings Material | AISI 52100 Steel |
| Housing Material | 304 Cast Stainless Steel |
Performance |
|
| Dynamic Radial Load | 6590 lbf |
| Static Radial Load | 4030 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| Lubrication Fitting Tap | 1/8-27 NPT |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.4 lbs |
