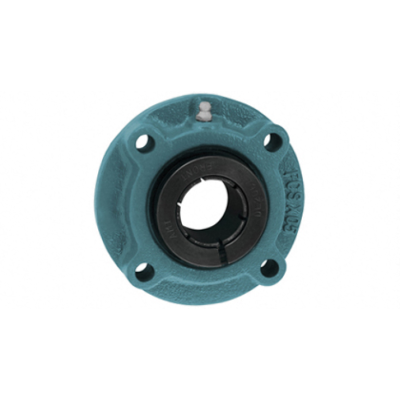

UEFCSX09-27
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | UEFCSX09-27 |
Brand: LILY  |
Interchangeable With: AMI |
| Bearing Part Number | UEX09-27 |
| Housing Part Number | FCSX09 |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Flange Bearing |
| Product Series | UEFCSX00 |
| Lubrication Fitting Tap | 1/8-27 NPT |
Dimensions |
|
| Bore Dia | 1.6875" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Outside Diameter | 5.125" |
| Hole Width | 0.5469" |
| Overall Height | 1.6406" |
| Flange Length | 4.25" |
| Flange Height | 1" |
| Whole Width | 6.125" |
| Whole Length | 6.125" |
| Hole Center to Center 2 | 0.4688" |
| Width of Inner Ring | 2.0781" |
| Width of Piloting Groove | 0.4375" |
| Mounting Bolt Size | 0.5" |
Material |
|
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
Performance |
|
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Lubrication | Required |
| Weight | 5.73 lbs |
Design Features of UEFCSX09-27 Bearing
UEFCSX09-27 feature an integrated bearing insert and a flanged housing that allows direct mounting onto vertical or side surfaces for precise shaft positioning. The flanged design ensures secure alignment and stable load distribution, even in compact or space-limited installations. Sealed constructions and durable housing materials enhance protection against contaminants and extend service life in industrial environments.
What Benefits Can UEFCSX09-27 Bearing Provide?
- Compact and Space-Saving Design: The flanged housing allows direct mounting to equipment frames or walls, making it ideal for installations with limited space.
- Accurate Shaft Positioning: The flange structure helps maintain precise axial and radial alignment, improving operational stability and reducing vibration.
- Easy Installation and Secure Mounting: Pre-drilled mounting holes enable quick installation while ensuring firm and reliable fixation.
- Good Load Support Capability: Flange bearings can handle radial loads and moderate axial loads, suitable for a wide range of light to medium-duty applications.
- Low Maintenance and Long Service Life: Sealed designs and robust materials protect against dust and contaminants, minimizing maintenance requirements and extending bearing life.
What Can UEFCSX09-27 Bearing Be Used for?
- Conveyor and Transfer Systems: They support shafts mounted on vertical or side panels, ensuring accurate alignment in compact conveyor layouts.
- Packaging and Automation Equipment: Widely applied in automated production lines where precise positioning and space efficiency are critical.
- Food and Beverage Processing Machinery: Used in equipment requiring hygienic designs and stable shaft support, often with stainless steel housings.
- Material Handling and Light Industrial Machinery: Suitable for guides, rollers, and auxiliary shafts operating under moderate loads.
- Agricultural and General Machinery: Applied in pumps, fans, and small mechanical systems where reliable, easy-to-mount bearing solutions are required.
