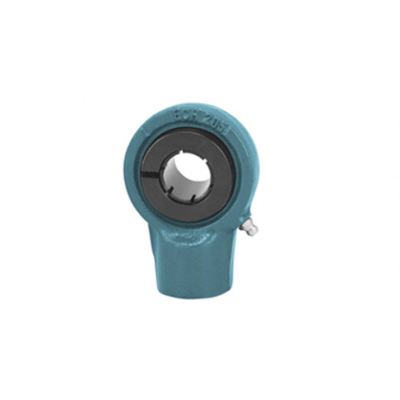

UEECH212
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | UEECH212 |
Brand: LILY  |
Interchangeable With: AMI |
| Bearing Part Number | UE212 |
| Housing Part Number | ECH212 |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Hanger Bearing Units |
| Shaft Mount Type | Eccentric Collar Locking |
| Product Series | UEECH200 |
| Lubrication Fitting Tap | 1/8 27 NPT |
Dimensions |
|
| Bore Dia | 60 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Hole Width | 1.25" |
| Housing Height | 60 mm |
| Pillow Height | 28.5 mm |
| Center Height | 101.6 mm |
| Whole Width | 66.6 mm |
| Whole Length | 143 mm |
| Length of Location Slot | 173 mm |
| Centerline Distance | 8.7 mm |
Material |
|
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
Performance |
|
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Lubrication | Required |
| Weight | 5.96 kg |
Design Features of UEECH212
UEECH212 feature a split or one-piece housing that clamps securely around a shaft, allowing support for suspended or overhanging shafts. The design provides easy installation and removal without disassembling surrounding machinery, while maintaining precise shaft alignment. Durable materials and sealed bearing inserts enhance load capacity, reduce contamination risk, and ensure long-term operational reliability in industrial applications.
What Benefits Can UEECH212 Provide?
- Support for Overhanging Shafts: They enable stable mounting of shafts that are not supported at both ends, preventing shaft deflection and vibration.
- Easy Installation and Replacement: Split or clamped designs allow quick mounting or removal without disassembling surrounding equipment.
- Accurate Shaft Alignment: The housing ensures proper concentricity and alignment, improving operational stability and reducing wear.
- Contamination Resistance: Sealed bearing inserts protect against dust, moisture, and other contaminants, extending service life.
- Versatility in Industrial Applications: Suitable for conveyors, material handling systems, and other machinery requiring suspended or cantilevered shaft support.
What Can UEECH212 Be Used for?
- Conveyor Systems: They support overhanging or suspended shafts in belt and roller conveyors, ensuring smooth operation and stable load handling.
- Material Handling Equipment: Applied in packaging, sorting, and lifting machinery where cantilevered shafts are required.
- Agricultural Machinery: Used in equipment such as conveyors, augers, and harvesters that involve suspended shafts.
- Industrial Fans and Blowers: Provide support for overhanging fan shafts, reducing vibration and enhancing reliability.
- General Manufacturing Machinery: Suitable for mixers, rollers, and other production equipment requiring cantilevered shaft support with easy installation and maintenance.
