UCPPL210-32MZ20B

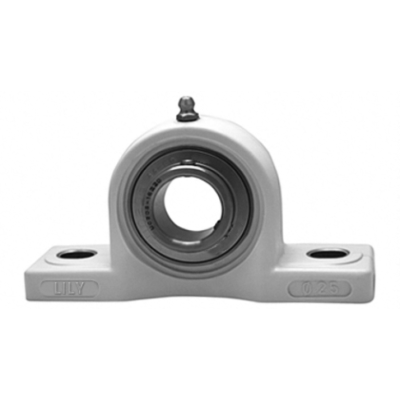

Name: UCPPL210-32MZ20B Pillow Block Bearing
Brand: LILY
Price: 69.74 USD
Availability: InStock

$69.74 /Each

Bulk orders will be discounted, please contact our sales for a bulk quote.

We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.

Searching for the best price?

Complete the inquiry form, and we'll provide you with the most suitable solution.

Need bulk industrial price?

Submit your volume requirements, and we'll provide a tailored quote for your scale.

Overview
Part Number	UCPPL210-32MZ20B
Brand: LILY	Interchangeable With: AMI
Bearing Part Number	UC210-32MZ20
Housing Part Number	PPL210
Characteristics
System of Measurement	Inch
Bearing Type	Ball Bearing
Bearing Seal Type	Double Sealed
Inner Ring Type	Wide Inner Ring
Mounted Type	Pillow Block Bearing
Shaft Mount Type	Set Screw Locking
Product Series	UCPPL200MZ20
Housing Color	Black
Lubrication Fitting Tap	1/4-28 UNF
Dimensions
Bore Dia	2"
Bore Dia Tolerance	-0.0005" to 0"
Hole Width	0.6719"
Hole Length	0.7813"
Overall Height	4.5"
Pillow Width	2.375"
Pillow Height	0.9063"
Center Height	2.25"
Whole Length	8.125"
Hole Ctr-to-Ctr Min	6.0938"
Hole Ctr-to-Ctr Max	6.4063"
Width of Inner Ring	2.031"
Mounting Bolt Size	0.625"
Material
Bearings Material	AISI 52100 Steel
Housing Material	PBT Thermoplastic
Performance
Temperature Range	-30° to 110 °C
Properties
RoHS	Compliant
REACH	Compliant
Lubrication	Required
Weight	2.88 lbs

UCPPL210-32MZ20B Pillow Block Bearing data sheet

Download Pdf

The housing of pillow block bearing, crafted from plastic, is engineered to withstand moisture-rich and chemically aggressive conditions with the lightweight corrosion resistance and rust-free durability needed to keep the overall mounted bearing assembly performing reliably over the long term.

Shaft retention is achieved through set screw locking in this pillow block bearing unit, which secures the shaft reliably against moderate loads and low-to-medium vibration — provided the shaft is of standard ground finish and the screws are correctly torqued — without damaging the shaft surface.

Two 0.625 inch bolts fasten the mounted bearing unit to the mounting surface, providing a secure and stable foundation that suits both new installations and direct replacement applications. This size indicates a medium-to-heavy duty housing, capable of handling higher radial loads and moderate shock, commonly found in agricultural and industrial drive applications.

Why choose Plastic for the bearing housing?

Because this pillow block bearing is specifically designed for moist, corrosive, or chemically aggressive conditions, plastic delivers lightweight corrosion resistance and zero rust where standard metal housings are prone to oxidation and surface degradation, making it a purpose-built choice for this application rather than a generic substitute.

Why does this bearing use Set Screw Locking to secure the shaft?

Set screw locking works by tightening one or two hardened screws directly against the shaft surface, which makes it well suited to applications where shaft positioning is fixed and loads are moderate. Its main advantage over other shaft locking methods is simplicity and low cost, which matters most when quick installation and minimal tooling are the priority.

How does the 0.625 inch affect installation and compatibility?

The bolt size directly determines whether the pillow block bearing can be mounted onto an existing frame or structure without modification. A 0.625 inch bolt corresponds to a medium-to-heavy duty hole pattern frequently found in agricultural machinery and industrial drive systems, so when replacing an existing unit, confirming this dimension ensures a drop-in fit. Mismatched bolt sizes may require redrilling the mounting surface or sourcing an adapter plate, adding time and cost to the installation.
