UCFLX07-22
Bulk orders will be discounted, please contact our sales for a bulk quote.
Ships in 1-2 business days after payment, plus 3-6 business days in transit via FedEx. Tracking information will be sent to your email.
Free shipping
Delivered in 4-8 business days
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Overview |
|
| Part Number | UCFLX07-22 |
Brand: LILY ![]() |
Interchangeable With: AMI |
| Size: 1.375" | |
| Bearing Part Number | UCX07-22 |
| Housing Part Number | FT208 |
| Product Series | UCFLX00 |
Characteristics |
|
| System of Measurement | Inch |
| Housing Style | Flange Bearing |
| Housing Configuration | 1 Piece Solid |
| Bearing Type | Ball Bearing |
| Bearing Duty | Medium Duty |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Bore Type | Straight |
| Inner Ring Type | Wide Inner Ring |
| Shaft Mount Type | Set Screw Locking |
| Bearing Seal Type | Double Sealed |
Dimensions |
|
| Shaft Diameter | 1.375" |
| Bore Dia | 1.375" |
| Width of Inner Ring | 1.937" |
| Whole Length | 6.75" |
| Whole Width | 4.125" |
| Overall Height | 2.016" |
| Housing Height | 1.5" |
| Mounting Bolt Size | 0.5" |
| Hole Dia | 0.5469" |
| Hole Center to Center | 5.6563" |
| Hole Center to Center 1 | 5.6563" |
| Hole Center to Center 2 | 5.6563" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bolt Circle Dia | 5.7" |
| Flange Height | 0.5625" |
| Flange Thickness | 0.5625" |
Material |
|
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
Performance |
|
| Dynamic Radial Load | 2150 lbf |
| Static Radial Load | 1080 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| Lubrication Fitting Tap | 1/8-27 NPT |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.19 lbs |
What does UCFLX07-22 mean?

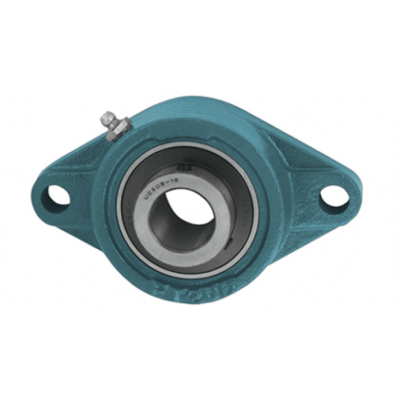

UCFLX07-22 is an AMI inch iron two-bolt flange unit with a wide inner ring insert and set screw locking, for a 1 3/8" (34.93 mm) shaft. The part number breaks down into 4 segments:
- UC
- Wide inner ring ball bearing insert, set screw locking, spherical outer ring. Insert part number is UCX07-22
- FL
- Housing style: iron two-bolt flange. Housing part number is FT208
- X07
- Frame size X07, X00 series (medium duty)
- -22
- Bore in sixteenths of an inch: 22/16" = 1 3/8" (34.93 mm)
Note: For inch mounted bearings, the number after the dash is the bore in sixteenths of an inch. For example, -8 is 1/2", -12 is 3/4" and -16 is 1".
Frequently asked questions
What does UCFLX07-22 mean?
UCFLX07-22 is an AMI inch iron two-bolt flange unit with a wide inner ring insert and set screw locking, for a 1 3/8" (34.93 mm) shaft. UC = wide inner ring ball bearing insert, set screw locking, spherical outer ring. Insert part number is UCX07-22, FL = housing style: iron two-bolt flange. Housing part number is FT208, X07 = frame size X07, X00 series (medium duty), -22 = bore in sixteenths of an inch: 22/16" = 1 3/8" (34.93 mm).
What is the bore size of UCFLX07-22?
The bore of UCFLX07-22 is 1 3/8" (34.93 mm).
Design Features of UCFLX07-22 Bearing
UCFLX07-22 feature an integrated bearing insert and a flanged housing that allows direct mounting onto vertical or side surfaces for precise shaft positioning. The flanged design ensures secure alignment and stable load distribution, even in compact or space-limited installations. Sealed constructions and durable housing materials enhance protection against contaminants and extend service life in industrial environments.
What Benefits Can UCFLX07-22 Bearing Provide?
- Compact and Space-Saving Design: The flanged housing allows direct mounting to equipment frames or walls, making it ideal for installations with limited space.
- Accurate Shaft Positioning: The flange structure helps maintain precise axial and radial alignment, improving operational stability and reducing vibration.
- Easy Installation and Secure Mounting: Pre-drilled mounting holes enable quick installation while ensuring firm and reliable fixation.
- Good Load Support Capability: Flange bearings can handle radial loads and moderate axial loads, suitable for a wide range of light to medium-duty applications.
- Low Maintenance and Long Service Life: Sealed designs and robust materials protect against dust and contaminants, minimizing maintenance requirements and extending bearing life.
What Can UCFLX07-22 Bearing Be Used for?
- Conveyor and Transfer Systems: They support shafts mounted on vertical or side panels, ensuring accurate alignment in compact conveyor layouts.
- Packaging and Automation Equipment: Widely applied in automated production lines where precise positioning and space efficiency are critical.
- Food and Beverage Processing Machinery: Used in equipment requiring hygienic designs and stable shaft support, often with stainless steel housings.
- Material Handling and Light Industrial Machinery: Suitable for guides, rollers, and auxiliary shafts operating under moderate loads.
- Agricultural and General Machinery: Applied in pumps, fans, and small mechanical systems where reliable, easy-to-mount bearing solutions are required.
