UCFA209-27
Bulk orders will be discounted, please contact our sales for a bulk quote.
Ships in 1-2 business days after payment, plus 3-6 business days in transit via FedEx. Tracking information will be sent to your email.
Free shipping
Delivered in 4-8 business days
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Overview |
|
| Part Number | UCFA209-27 |
Brand: LILY ![]() |
Interchangeable With: AMI |
| Size: 1.6875" | |
| Bearing Part Number | UC209-27 |
| Housing Part Number | FA209 |
| Product Series | UCFA200 |
Characteristics |
|
| System of Measurement | Inch |
| Housing Style | Flange Bearing |
| Housing Configuration | 1 Piece Solid |
| Bearing Type | Ball Bearing |
| Bearing Duty | Standard Duty |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Bore Type | Straight |
| Inner Ring Type | Wide Inner Ring |
| Shaft Mount Type | Set Screw Locking |
| Bearing Seal Type | Double Sealed |
Dimensions |
|
| Shaft Diameter | 1.6875" |
| Bore Dia | 1.6875" |
| Width of Inner Ring | 1.937" |
| Whole Length | 7.125" |
| Whole Width | 4.25" |
| Overall Height | 2.063" |
| Housing Height | 1.5" |
| Mounting Bolt Size | 0.5" |
| Hole Dia | 0.625" |
| Hole Center to Center | 5.8281" |
| Hole Center to Center 1 | 5.8281" |
| Hole Center to Center 2 | 5.8281" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bolt Circle Dia | 5.8" |
| Flange Height | 0.7031" |
| Flange Length | 3.5469" |
| Flange Thickness | 0.703125" |
| Hole Length | 2 53/64" |
| Hole Width | 0.625" |
Material |
|
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
Performance |
|
| Dynamic Radial Load | 2150 lbf |
| Static Radial Load | 1080 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| Lubrication Fitting Tap | 1/8-27 NPT |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.4 lbs |
What does UCFA209-27 mean?

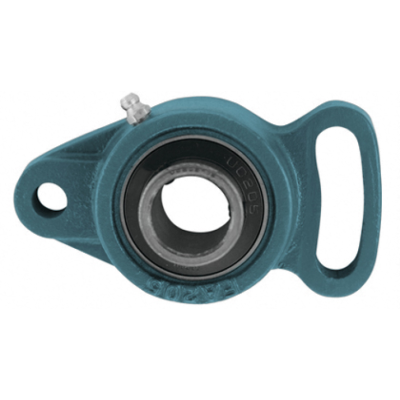

UCFA209-27 is an AMI inch iron adjustable two-bolt flange unit with a wide inner ring insert and set screw locking, for a 1 11/16" (42.86 mm) shaft. The part number breaks down into 4 segments:
- UC
- Wide inner ring ball bearing insert, set screw locking, spherical outer ring. Insert part number is UC209-27
- FA
- Housing style: iron adjustable two-bolt flange. Housing part number is FA209
- 209
- Frame size 209, 200 series (normal duty)
- -27
- Bore in sixteenths of an inch: 27/16" = 1 11/16" (42.86 mm)
Note: For inch mounted bearings, the number after the dash is the bore in sixteenths of an inch. For example, -8 is 1/2", -12 is 3/4" and -16 is 1".
Frequently asked questions
What does UCFA209-27 mean?
UCFA209-27 is an AMI inch iron adjustable two-bolt flange unit with a wide inner ring insert and set screw locking, for a 1 11/16" (42.86 mm) shaft. UC = wide inner ring ball bearing insert, set screw locking, spherical outer ring. Insert part number is UC209-27, FA = housing style: iron adjustable two-bolt flange. Housing part number is FA209, 209 = frame size 209, 200 series (normal duty), -27 = bore in sixteenths of an inch: 27/16" = 1 11/16" (42.86 mm).
What is the bore size of UCFA209-27?
The bore of UCFA209-27 is 1 11/16" (42.86 mm).
Design Features of UCFA209-27 Bearing
UCFA209-27 feature an integrated bearing insert and a flanged housing that allows direct mounting onto vertical or side surfaces for precise shaft positioning. The flanged design ensures secure alignment and stable load distribution, even in compact or space-limited installations. Sealed constructions and durable housing materials enhance protection against contaminants and extend service life in industrial environments.
What Benefits Can UCFA209-27 Bearing Provide?
- Compact and Space-Saving Design: The flanged housing allows direct mounting to equipment frames or walls, making it ideal for installations with limited space.
- Accurate Shaft Positioning: The flange structure helps maintain precise axial and radial alignment, improving operational stability and reducing vibration.
- Easy Installation and Secure Mounting: Pre-drilled mounting holes enable quick installation while ensuring firm and reliable fixation.
- Good Load Support Capability: Flange bearings can handle radial loads and moderate axial loads, suitable for a wide range of light to medium-duty applications.
- Low Maintenance and Long Service Life: Sealed designs and robust materials protect against dust and contaminants, minimizing maintenance requirements and extending bearing life.
What Can UCFA209-27 Bearing Be Used for?
- Conveyor and Transfer Systems: They support shafts mounted on vertical or side panels, ensuring accurate alignment in compact conveyor layouts.
- Packaging and Automation Equipment: Widely applied in automated production lines where precise positioning and space efficiency are critical.
- Food and Beverage Processing Machinery: Used in equipment requiring hygienic designs and stable shaft support, often with stainless steel housings.
- Material Handling and Light Industrial Machinery: Suitable for guides, rollers, and auxiliary shafts operating under moderate loads.
- Agricultural and General Machinery: Applied in pumps, fans, and small mechanical systems where reliable, easy-to-mount bearing solutions are required.
