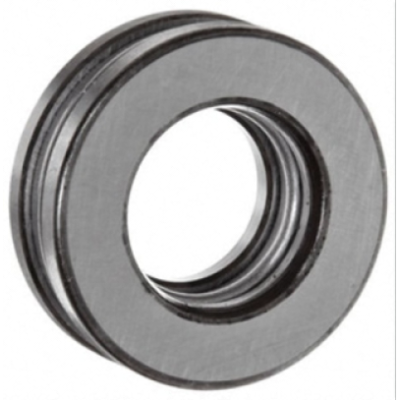

Thrust Ball Bearing With Full Ball Complement
/
T-101-44
T-101-44
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | T-101-44 |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Thrust |
| Ball Qty | 30 |
Dimensions |
|
| Small Bore Dia | 5.125" |
| Small Bore Dia Tolerance | +0.003'' to +0.007'' |
| Large Bore Dia | 5.188" |
| Large Bore Dia Tolerance | 0'' to +0.015'' |
| Small Outer Dia | 7" |
| Small Outer Dia Tolerance | 0'' to -0.031'' |
| Large Outer Dia | 6.906" |
| Large Outer Dia Tolerance | -0.004'' to +0.004'' |
| Height | 1.5" |
| Height Tolerance | -0.005'' to +0.005'' |
| Ball Dia | 0.625" |
Material |
|
| Washer Material | 52100 Chrome Steel |
| Ball Material | Chrome Steel |
Performance |
|
| Dynamic Thrust Load(25 RPM) | 17900lbf |
| Dynamic Thrust Load(100 RPM) | 11790lbf |
| Dynamic Thrust Load(500 RPM) | 7265lbf |
| Static Thrust Load | 104704 lbf |
| Temperature Range | -30° to 110° C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 6.25 lbs |
