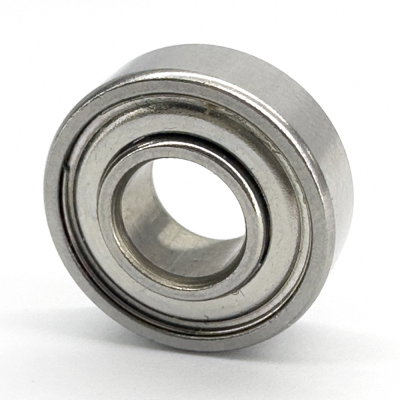

SRW133zz
SRW133zz
$4.26
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Overview |
|
| Part Number | SRW133zz |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Ball |
| Seal Type | Shielded |
| Inner Ring Type | Extended |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 10 |
| Tolerance Class | ABEC1 |
Dimensions |
|
| Bore Dia | 0.09375" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.1875" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.0937" |
| Width Tolerance | -0.005" to 0" |
| Ball Dia | 0.0236" |
| Inner Ring Width | 0.125" |
| External Diameter On Inner Ring | 0.118" |
| Radial Clearance | 0.0002" to 0.00039" |
| Radial Clearance Trade No | MC3 |
Material |
|
| Ring Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
Performance |
|
| Dynamic Radial Load | 25 lbf |
| Static Radial Load | 9 lbf |
| Max Speed (X1000 rpm) | 72 |
| Temperature Range | -86 to 230 °F |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.15 g |
INTERCHANGE
The LILY Bearing part series SRW133zz is a potential replacement for these common bearing part numbers.
LILY
LSRW133zz
NMB
DDRI-3332ZZEE
DYNAROLL
SRW133ZZS
EZO
SRW133ZZS
NHBB
SSRI-3332ZZEE
MPB (Timken)
S3332CHHE
EZO
SRW133ZZA3MC3SRL
