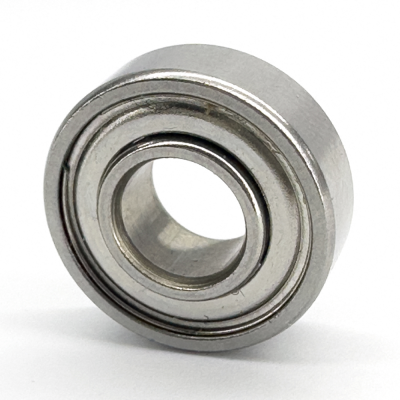

SRW133zz Stainless Steel Bearings
SRW133zz Stainless Steel Bearings
$4.26
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | SRW133zz Stainless Steel Bearings |
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Inner Ring Type | Extended |
| Seal Type | Shielded |
| Bore Dia | 0.0938" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.1875" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.0937" |
| Width Tolerance | -0.005" to 0" |
| Inner Ring Outer Dia | 0.118" |
| Inner Ring Width | 0.125" |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 25 lbf |
| Static Radial Load | 9 lbf |
| Max Speed (X1000 rpm) | 72 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC1 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.0236" |
| Ball Qty | 10 |
| Weight | 0.15 g |
INTERCHANGE
The LILY Bearing part series SRW133zz Stainless Steel Bearings is a potential replacement for these common bearing part numbers.
LILY
LSRW133zz
NMB
DDRI-3332ZZEE
DYNAROLL
SRW133ZZS
EZO
SRW133ZZS
NHBB
SSRI-3332ZZEE
MPB (Timken)
S3332CHHE
EZO
SRW133ZZA3MC3SRL
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
