SR2-5 A3MC3AF2
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY

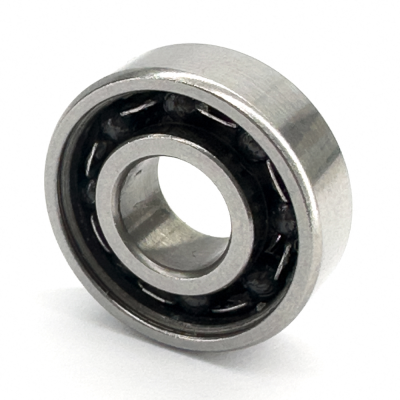

| Part Number | SR2-5 A3MC3AF2 |
Brand: LILY  |
Interchangeable With: EZO |
| System of Measurement | Inch |
| Bearing Type | Ball |
| Seal Type | Open |
| Inner Ring Type | Standard |
| Shaft Mount Type | Press Fit |
| For Load Direction | Radial |
| Construction | Single Row |
| Bore Dia | 0.125" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.3125" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1094" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 96 lbf |
| Static Radial Load | 29 lbf |
| Max Speed (X1000 rpm) | 54 |
| Lubrication | AERO SHELL FLUID 12: (OIL) |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC3 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.0625" |
| Ball Qty | 6 |
| Weight | 0.5 g |
