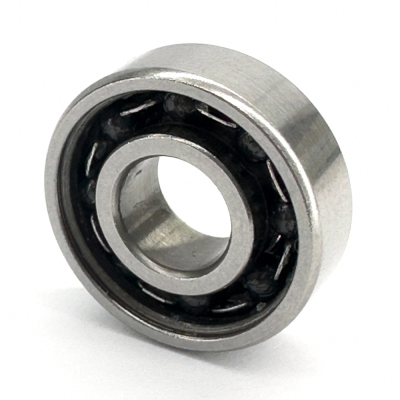

SR09 A3MC3AF2
| Part Number | SR09 A3MC3AF2 |
Brand: LILY  | |
Equivalent: EZO |
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Inner Ring Type | Standard |
| Seal Type | Open |
| Bore Dia | 0.04" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.125" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.0469" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 18 lbf |
| Static Radial Load | 4 lbf |
| Max Speed (X1000 rpm) | 117 |
| Lubrication | AERO SHELL FLUID 12: (OIL) |
| Shaft Mount Type | Press Fit |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC3 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.025" |
| Ball Qty | 6 |
| Weight | 0.05 g |
