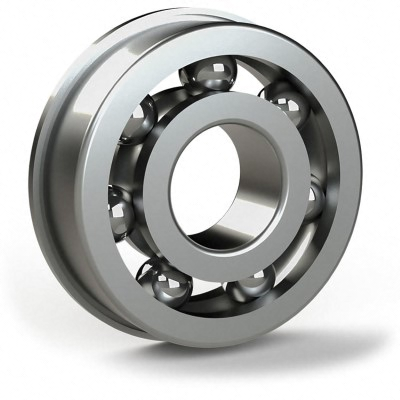

SF6704
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | SF6704 |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Open |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 18 |
| Tolerance Class | ABEC-1 |
Dimensions |
|
| Bore Dia | 20 mm |
| Outer Dia | 27 mm |
| Width | 4 mm |
| Ball Dia | 1.588 mm |
| Flange Outer Dia | 28 mm |
| Flange Thickness | 0.8 mm |
| Radial Clearance | 0.002mm to 0.013mm |
| Radial Clearance Trade No | C0 |
Material |
|
| Ring Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
Performance |
|
| Dynamic Radial Load | 204 lbf |
| Static Radial Load | 15 lbf |
| Max Speed (X1000 rpm) | 7.7 |
| Temperature Range | -30° to 110°C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
Design Features of SF6704 Bearing
SF6704 Bearing is designed to effectively handle radial loads, provide precise alignment and facilitate easy mounting in applications where axial positioning is essential. SF6704 bore dia is 20 mm. Its out dia is 27 mm. SF6704 flange outer dia is Flange_27 mm and its flange thickness is 0.8 mm. Its robust construction and flange design can offer reliable performance and extended service life.
What Benefits Can SF6704 Bearing Provide?
- Precise Axial Positioning: The integrated flange aids in securing the bearing axially, ensuring optimal alignment.
- Simplified Installation: The flange allows for easier bearing assembly and disassembly, reducing maintenance time.
- Enhanced Durability: This bearing typically has robust construction for prolonged service life, even in demanding applications.
- Reduced Friction: Their design aids in lowering friction, promoting energy efficiency.
What Can SF6704 Bearing Be Used for?
SF6704 Bearing is suitable for a wide range of applications due to their design and load handling capabilities, including:
- Automotive: used in assemblies like transmissions, steering mechanisms, and wheel hubs
- Industrial Machinery: such as conveyor systems, electric motors, and various mechanical handling systems
- Home Appliances: such as washing machines, air conditioners, and refrigerators
- Aerospace: used in aircraft control systems and satellite equipment
- Electronics: like hard drives and DVD players
- Robotics: used in robotic arms and automated machinery
