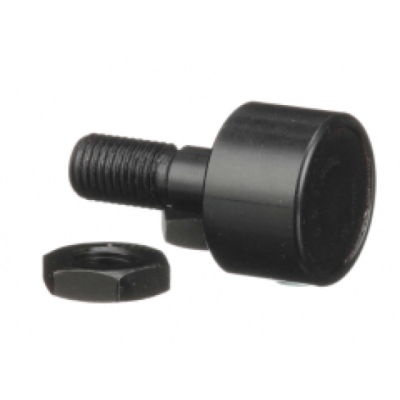

SDMCF 60
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | SDMCF 60 |
Brand: LILY  |
Interchangeable With: McGill |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Caged Needle Roller |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 60 mm |
| Roller Width | 35 mm |
| Stud Dia | 24 mm |
| Stud Length | 50 mm |
| Threads | M24x2 |
| Minimum Thread Length | 27 mm |
| Shoulder Dia | 39.6 mm |
| Shoulder Length | 0.8 mm |
| Hex Socket | 12 mm |
| Crown Radius | 500 mm |
| Clamping Torque | 216 Nm |
| Static Radial Load | 10408 lbf |
| Dynamic Radial Load | 5931 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.86 lb |
| Max Speed (rpm) | 3100 |
