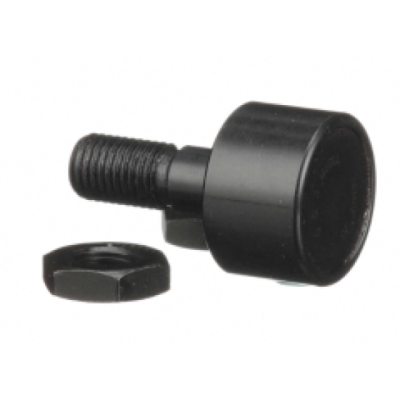

SDCF 3 Stud Type Rollers
SDCF 3 Stud Type Rollers
Part Number SDCF 3
Mcgill Part No SDCF 3
LILY Part No LSDCF 3
System of Measurement Inch
Type Standard Stud
Roller Shape Cylindrical
Internal Construction Caged Needle Rollers
For Load Direction Radial
Mounting Method Hex Hole
Seal Type Sealed
Platform Special Duty
Roller Material Bearing Steel
Roller Dia 3"
Roller Width 1.75"
Stud Dia 1.25"
Stud Length 2.5"
Threads 1 1/4-12
Minimum Thread Length 2.50"
Shoulder Dia 2.14"
Shoulder Length 0.03"
Hex Socket 0.4375"
Lubrication Hole Location None
Clamping Torque 3450 lbf
Max Speed 2200
Static Radial Load 19700 lbf
Dynamic Radial Load 1061 lbf
RoHS Compliant
REACH Compliant
Weight 3.87 LB
