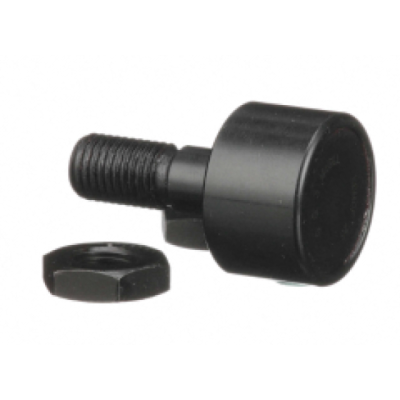

SDCF 1 Cam Followers
Price Not yet
| Mcgill Part No. | SDCF 1 |
| LILY Part No. | LSDCF 1 |
| Cross Reference | McGill |
| System of Measurement | Inch |
| Platform | Special Duty |
| Type | Standard Stud |
| Roller Dia | 1" |
| Stud Roller Dia | 1" |
| Roller Width | 0.625" |
| Stud Roller Width | 0.625" |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Stud Dia | 0.4375" |
| Stud Length | 1" |
| Seal Type | Sealed |
| Static Load Rating | 1450 lbf |
| Dynamic Radial Rating | 1280 lbf |
| Dynamic Track Roller Load Rating | 1280 lbs |
| Limiting Speed | 12500 |
| Minimum Thread Length | 0.5" |
| Adjustment | None |
| Roller Shape | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Hex Socket | 0.1875" |
| Threads | 7/16-20 |
| Relubricatable | Yes |
| O D Configuration | Cylindrical |
| Stud Type | Standard Stud |
| Clamping Torquein | 250 lbf |
| Hex Slot | Hex Hole |
| Weight | 0.16 LB |
| Mounting Method | Hex Hole |
| Internal Construction | Caged needle rollers |
