S51211
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | S51211 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 55 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 90 mm |
| Outer Dia Tolerance | -0.02mm to 0 |
| Height | 25 mm |
| Height Tolerance | +0.02mm to -0.3mm |
| Outer Dia Shaft Washer | 90 mm |
| Inner Dia Housing Washer | 57 mm |
| Chamfer Dimension Washer | 1 mm |
| Washer Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Thrust Load | 11836 lbf |
| Static Thrust Load | 27112 lbf |
| Max Speed (X1000 rpm) | 3.6 |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.59 kg |

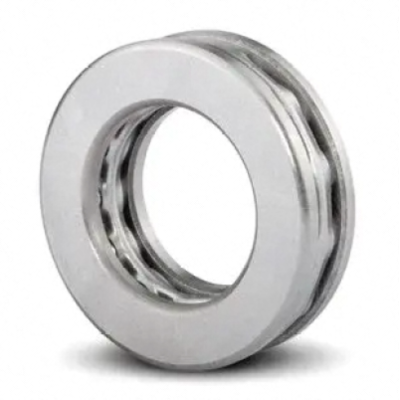

S51211 Single Direction Thrust Ball Bearings are a kind of separation bearings. S51211 bore dia is 55 mm. Its out dia is 90 mm. S51211 ball material is 440C Stainless Steel. Its seal type is Open. S51211 Single Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Typical Applications
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
General Selection Factors
Several factors must be considered for choosing Single Direction Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
