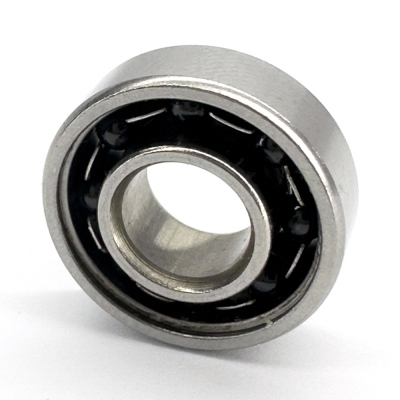

RW155
RW155
$2.95
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | RW155 |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Ball |
| Seal Type | Open |
| Inner Ring Type | Extended |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 10 |
| Tolerance Class | ABEC1 |
Dimensions |
|
| Bore Dia | 0.15625" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.3125" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1094" |
| Width Tolerance | -0.005" to 0" |
| Ball Dia | 0.0394" |
| Inner Ring Width | 0.1406" |
| External Diameter On Inner Ring | 0.221" |
| Radial Clearance | 0.0002" to 0.00039" |
| Radial Clearance Trade No | MC3 |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Stainless Steel |
Performance |
|
| Dynamic Radial Load | 69 lbf |
| Static Radial Load | 27 lbf |
| Max Speed (X1000 rpm) | 53 |
| Temperature Range | -86 to 230 °F |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.61 g |
