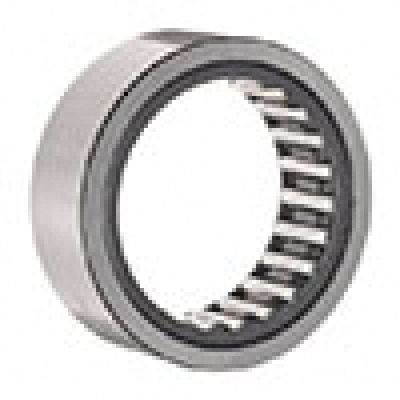

RNAO60X78X20-XL
| Part Number | RNAO60X78X20-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 60 mm |
| Bore Dia Tolerance | 0.03mm to 0.049mm |
| Outer Dia | 78 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 20 mm |
| Width Tolerance | -0.15mm to 0 |
| Chamfer Dimension | 1 mm |
| E | 68 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 11138 lbf |
| Static Radial Load | 19125 lbf |
| Max Speed (X1000 rpm) | 7.7 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 255 g |
})
INTERCHANGE
The LILY bearing part series RNAO60X78X20-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LRNAO60X78X20-XL
NAO 50×78×20
RNAO 60×78×20
NAF 507820
RNAF 607820
NAO 50×78×20
RNAO 60×78×20
NAO 50×78×20
RNAO 60×78×20
