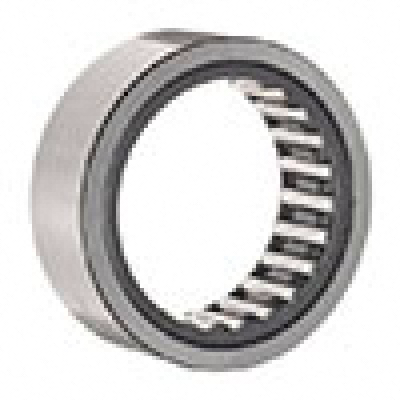

RNAO25X35X17-XL
| Part Number | RNAO25X35X17-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 25 mm |
| Bore Dia Tolerance | 0.02mm to 0.033mm |
| Outer Dia | 35 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 17 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3 mm |
| E | 29 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 3780 lbf |
| Static Radial Load | 5850 lbf |
| Max Speed (X1000 rpm) | 18.1 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 53 g |
})
INTERCHANGE
The LILY bearing part series RNAO25X35X17-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITH INNER RING NKI
IKO WITH INNER RING TAFI
SKF WITH INNER RING NKI
LRNAO25X35X17-XL
RNAO 25×35×17
RNAF 253517
RNAO 25×35×17
