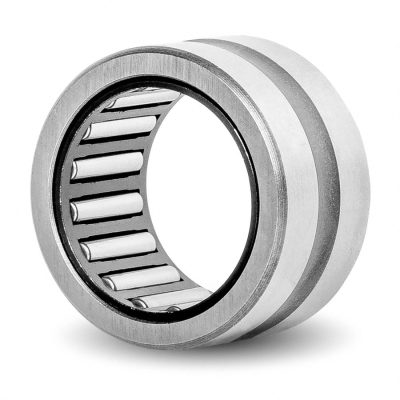

RNA4848-XL
| Part Number | RNA4848-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 265 mm |
| Bore Dia Tolerance | 0.056mm to 0.088mm |
| Outer Dia | 300 mm |
| Outer Dia Tolerance | -0.035mm to 0 |
| Width | 60 mm |
| Width Tolerance | -0.35mm to 0 |
| Chamfer Dimension | 2mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 90000 lbf |
| Static Radial Load | 243000 lbf |
| Max Speed (X1000 rpm) | 1.8 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 5400 g |
})
INTERCHANGE
The LILY bearing part series RNA4848-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LRNA4848-XL
NA 4848
RNA 4848
NA 4848
RNA 4848
NA 4848
RNA 4848
NA 4848
RNA 4848
