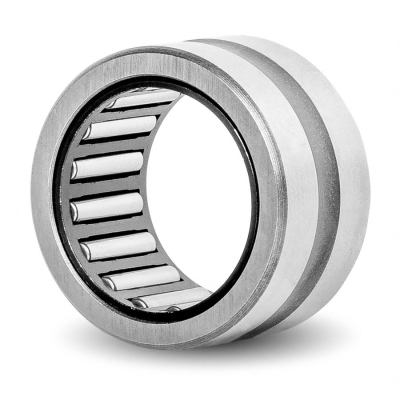

RNA4836-XL
| Part Number | RNA4836-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 195 mm |
| Bore Dia Tolerance | 0.05mm to 0.079mm |
| Outer Dia | 225 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 45 mm |
| Width Tolerance | -0.3mm to 0 |
| Chamfer Dimension | 1.1mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 49275 lbf |
| Static Radial Load | 123750 lbf |
| Max Speed (X1000 rpm) | 2.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 2680 g |
})
INTERCHANGE
The LILY bearing part series RNA4836-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LRNA4836-XL
NA 4836
RNA 4836
NA 4836
RNA 4836
NA 4836
RNA 4836
NA 4836
RNA 4836
