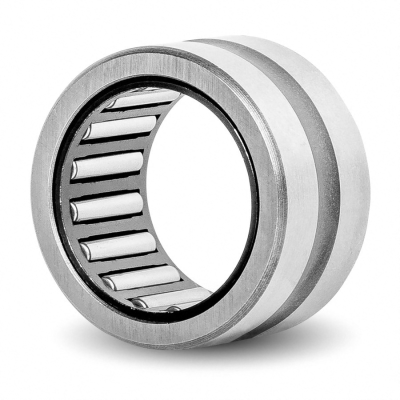

RNA4830-XL
| Part Number | RNA4830-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 165 mm |
| Bore Dia Tolerance | 0.043mm to 0.068mm |
| Outer Dia | 190 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 40 mm |
| Width Tolerance | -0.25mm to 0 |
| Chamfer Dimension | 1.1mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 38700 lbf |
| Static Radial Load | 90000 lbf |
| Max Speed (X1000 rpm) | 2.9 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 1600 g |
})
INTERCHANGE
The LILY bearing part series RNA4830-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LRNA4830-XL
NA 4830
RNA 4830
NA 4830
RNA 4830
NA 4830
RNA 4830
NA 4830
RNA 4830
