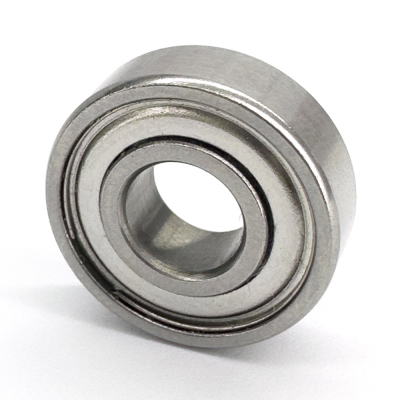

RI-1438KK
| Part Number | RI-1438KK |
Brand: LILY  | |
Equivalent: NMB |
| System of Measurement | Inch |
| RI-1438KK RA1P25L01 | |
| RI-1438KKRA1P25LG20 | |
| RI-1438KKRA3P25LY121 | |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Bore Dia | 0.375" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.875" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.2812" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 638 lbf |
| Static Radial Load | 256 lbf |
| Max Speed (X1000 rpm) | 32 |
| Lubrication | Required |
| Temperature Range | -86 to 230 °F |
| Shaft Mount Type | Press Fit |
| ABEC Rating | ABEC1 (Available in ABEC3/5/7) |
| Radial Clearance Trade No | MC3 （Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| ROHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.15630" |
| Ball Qty | 7 |
| Weight | 11.7 g |
})
Design Features of RI-1438KK Bearing
RI-1438KK Bearing offers dependable and efficient performance in industrial applications where space is at a premium. RI-1438KK bore dia is 0.375". Its out dia is 0.875". RI-1438KK ball material is Chrome Steel. Its seal type is Shielded. This bearing boasts high-speed capabilities, low friction, and minimal noise levels, ensuring optimal performance. Built to meet industry standards for precision and durability, it is an ideal choice for a variety of compact-space applications in diverse industries.
Applications of RI-1438KK Bearing
RI-1438KK Bearing finds applications in various industries that require high precision and compact design, such as medical devices, robotics, and aerospace technology. It is also used in computer hard drives, motors, and instrumentation equipment. Its small size and efficient performance make it a popular choice for industries where space is limited but high precision is essential.
Maintenance and Troubleshooting Tips of RI-1438KK Bearing
To ensure optimal performance and longevity of RI-1438KK Bearing, regular maintenance is necessary. Inspect the bearing frequently for any signs of damage, wear, or contamination. Clean it with a non-corrosive solvent and dry it thoroughly before lubrication. If any damage or excessive wear is detected, replace the bearing immediately. In case of any issues with the application, troubleshoot to ensure the bearing is being used within its designed parameters.
