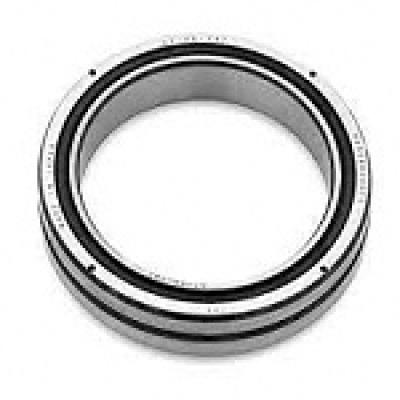

RB9016UU
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | RB9016UU |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Crossed |
| Seal Type | Double Seal |
| Shaft Mount Type | Press Fit |
| For Load Direction | Combined |
| Construction | Single Row |
| ABEC Rating | ABEC5(Available in ABEC7/9) |
| Holes | Without Holes |
Dimensions |
|
| Bore Dia | 90 mm |
| Outer Dia | 130 mm |
| Width | 16 mm |
| Shoulder Height Ds(max) | 98 mm |
| Shoulder Height Dh(min) | 118 mm |
| R(min) | 1 mm |
Material |
|
| Ring Material | Steel |
| Roller Material | Steel |
Performance |
|
| Basic Load Rating C | 31.4 kN |
| Basic Load Rating Co | 45.3 kN |
| Temperature Range | 0 -230 °F |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.75 kg |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of RB9016UU Bearing
RB9016UU Bearing is designed with a unique structure that allows for high rigidity and precision in applications with limited space. RB9016UU outer dia is 130 mm. Its bore dia is 90 mm. Its rollers are arranged in a crossed pattern, enabling it to support axial and radial loads simultaneously while minimizing friction and wear.
What Benefits Can RB9016UU Bearing Provide?
- High Load Capacity: Its design allows for the support of both axial and radial loads, making it suitable for applications with heavy load requirements.
- Compact Size: The crossed roller configuration enables a more compact design, ideal for applications with limited space.
- Enhanced Precision: The bearing provides high rotational accuracy and stability, making it suitable for precision machinery and equipment.
- Reduced Friction: The unique roller arrangement minimizes friction, leading to smoother operation and extended service life.
- Versatility: This bearing is adaptable for various applications, including robotics, machine tools, and industrial equipment.
- Improved Durability: The robust construction enhances durability and reliability, even in demanding conditions.
What Can RB9016UU Bearing Be Used for?
- Robotics: Ideal for robotic joints and axes due to their high precision and compact size.
- Machine Tools: Used in CNC machines and milling equipment for improved accuracy and stability.
- Industrial Equipment: Suitable for various types of industrial machinery requiring reliable load support and smooth operation.
- Medical Devices: Employed in surgical robots and imaging equipment for precise movements.
- Aerospace Applications: Utilized in systems where high reliability and performance are critical.
- Optical Equipment: Used in camera and lens mechanisms for precise positioning.
- Semiconductor Manufacturing: Essential in equipment requiring high precision and minimal wear during operation.
