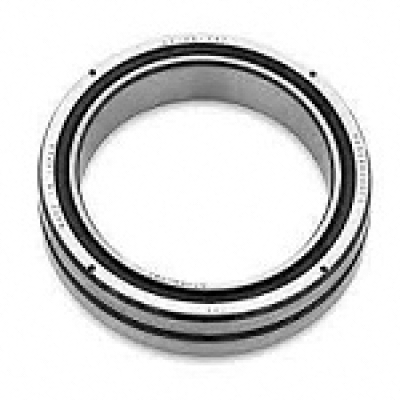

RB20025UU
| Part Number | RB20025UU |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Crossed |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Double Seal |
| Bore Dia | 200 mm |
| Outer Dia | 260 mm |
| Width | 25 mm |
| R(min) | 2 mm |
| Shoulder Height Ds(max) | 215 mm |
| Shoulder Height Dh(min) | 245 mm |
| Holes | Without Holes |
| Ring Material | Steel |
| Roller Material | Steel |
| Basic Load Rating C | 84.2 kN |
| Basic Load Rating Co | 157 kN |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | 0 -230 °F |
| ABEC Rating | ABEC5(Available in ABEC7/9) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4 Kg |
})
INTERCHANGE
The LILY bearing part series RB20025UU is a potential replacement for these common bearing part numbers.
LILY
IKO
IKO NUMBER NEEDLE CAGE NART..UUR
LRB20025UU
CRB20025UU
RB20025UU
