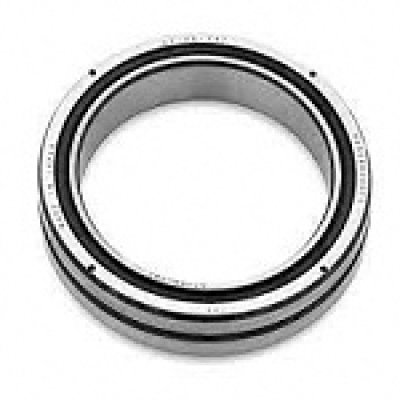

RB18025UU
Part Number | RB18025UU |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Crossed |
For Load Direction | Combined |
Construction | Single Row |
Seal Type | Double Seal |
Bore Dia | 180 mm |
Outer Dia | 240 mm |
Width | 25 mm |
R(min) | 1.5 mm |
Shoulder Height Ds(max) | 195 mm |
Shoulder Height Dh(min) | 225 mm |
Holes | Without Holes |
Ring Material | Steel |
Roller Material | Steel |
Basic Load Rating C | 84 kN |
Basic Load Rating Co | 143 kN |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | 0 -230 °F |
ABEC Rating | ABEC5(Available in ABEC7/9) |
RoHS | Compliant |
REACH | Compliant |
Weight | 3.44 Kg |
INTERCHANGE
The LILY bearing part series RB18025UU is a potential replacement for these common bearing part numbers.
LILY
IKO NUMBER NEEDLE CAGE NART..UUR
LRB18025UU
RB18025UU
