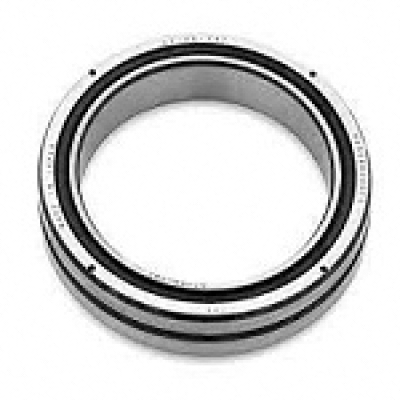

RA19013
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | RA19013 |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Crossed |
| Seal Type | Open |
| Shaft Mount Type | Press Fit |
| For Load Direction | Combined |
| Construction | Single Row |
| ABEC Rating | ABEC5(Available in ABEC7/9) |
| Holes | Without Holes |
Dimensions |
|
| Bore Dia | 190 mm |
| Outer Dia | 216 mm |
| Width | 13 mm |
| Shoulder Height Ds(max) | 195 mm |
| Shoulder Height Dh(min) | 209 mm |
| R(min) | 0.8 mm |
| Greasing Hole(a) | 2.5 mm |
| Greasing Hole(b) | 1.6 mm |
Material |
|
| Ring Material | Steel |
| Roller Material | Steel |
Performance |
|
| Basic Load Rating C | 24.9 kN |
| Basic Load Rating Co | 51.5 kN |
| Temperature Range | 0 -230 °F |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.69 kg |
Design Features of RA19013 Bearing
RA19013 Bearing features a slim profile that allows it to fit into compact spaces while still providing high load capacity and rigidity. RA19013 outer dia is 216 mm. Its bore dia is 190 mm. Its unique crossed roller arrangement enables it to handle both radial and axial loads with excellent precision, making it suitable for a variety of demanding applications.
What Benefits Can RA19013 Bearing Provide?
- Space Efficiency: Its slim design allows for installation in tight spaces, making it ideal for applications with limited room.
- High Load Capacity: Despite its thin profile, it can support significant axial and radial loads, ensuring reliability in demanding applications.
- Precision Performance: The crossed roller configuration provides enhanced rotational accuracy, making it suitable for precision machinery.
- Reduced 0.69 kg: The lightweight design helps decrease the overall weight of the equipment, contributing to improved efficiency.
- Versatility: It can be used in a wide range of applications, from robotics to medical devices and optical equipment.
- Low Friction: The bearing design minimizes friction, leading to smoother operation and extended service life.
- Durability: Constructed with robust materials, it offers high durability and resistance to wear, ensuring long-term performance.
What Can RA19013 Bearing Be Used for?
- Robotics: Ideal for robotic joints and end effectors where precision and compact design are critical.
- Medical Devices: Employed in surgical instruments, imaging equipment, and diagnostic devices for accurate movement and positioning.
- Optical Equipment: Used in cameras, microscopes, and other optical systems for precise alignment and smooth operation.
- Aerospace Applications: Suitable for systems requiring lightweight and reliable components with high load capacity.
- Machine Tools: Utilized in CNC machines and precision cutting tools for enhanced performance and accuracy.
- Industrial Automation: Used in automated machinery and conveyors where space and load handling are essential.
- Semiconductor Manufacturing: Essential in equipment requiring high precision and minimal wear during operation.
