R-2KK1
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | R-2KK1 |
Brand: LILY  |
Interchangeable With: NMB |
| System of Measurement | Inch |
| R-2KK1 RA3 P25LY121 | |
| R-2KK1RA1P58LG20 | |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Bore Dia | 0.125" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.375" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1562" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 121 lbf |
| Static Radial Load | 39 lbf |
| Max Speed (X1000 rpm) | 56 |
| Lubrication | Required |
| Temperature Range | -86 to 230 °F |
| Shaft Mount Type | Press Fit |
| ABEC Rating | ABEC1 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.0625" |
| Ball Qty | 7 |
| Weight | 1.37 g |

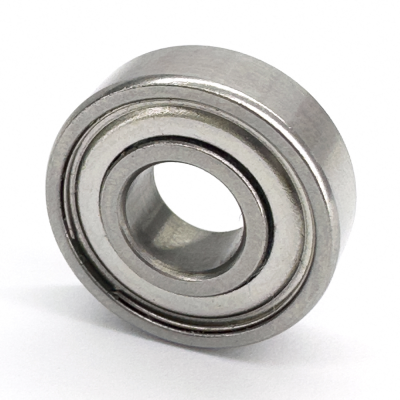

Design Features of R-2KK1 Bearing
R-2KK1 Bearing offers dependable and efficient performance in industrial applications where space is at a premium. R-2KK1 bore dia is 0.125". Its out dia is 0.375". R-2KK1 ball material is Chrome Steel. Its seal type is Shielded. This bearing boasts high-speed capabilities, low friction, and minimal noise levels, ensuring optimal performance. Built to meet industry standards for precision and durability, it is an ideal choice for a variety of compact-space applications in diverse industries.
Applications of R-2KK1 Bearing
R-2KK1 Bearing finds applications in various industries that require high precision and compact design, such as medical devices, robotics, and aerospace technology. It is also used in computer hard drives, motors, and instrumentation equipment. Its small size and efficient performance make it a popular choice for industries where space is limited but high precision is essential.
Maintenance and Troubleshooting Tips of R-2KK1 Bearing
To ensure optimal performance and longevity of R-2KK1 Bearing, regular maintenance is necessary. Inspect the bearing frequently for any signs of damage, wear, or contamination. Clean it with a non-corrosive solvent and dry it thoroughly before lubrication. If any damage or excessive wear is detected, replace the bearing immediately. In case of any issues with the application, troubleshoot to ensure the bearing is being used within its designed parameters.
